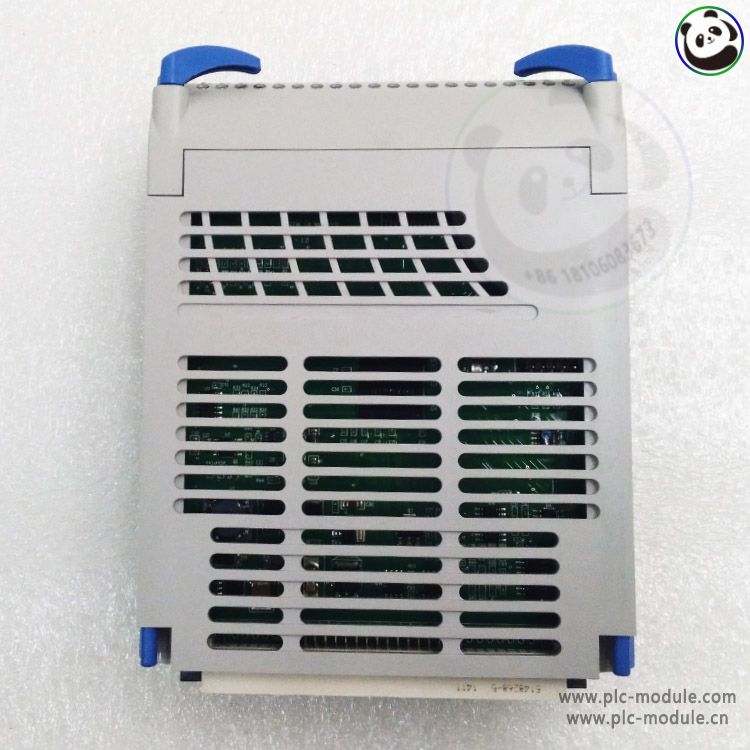

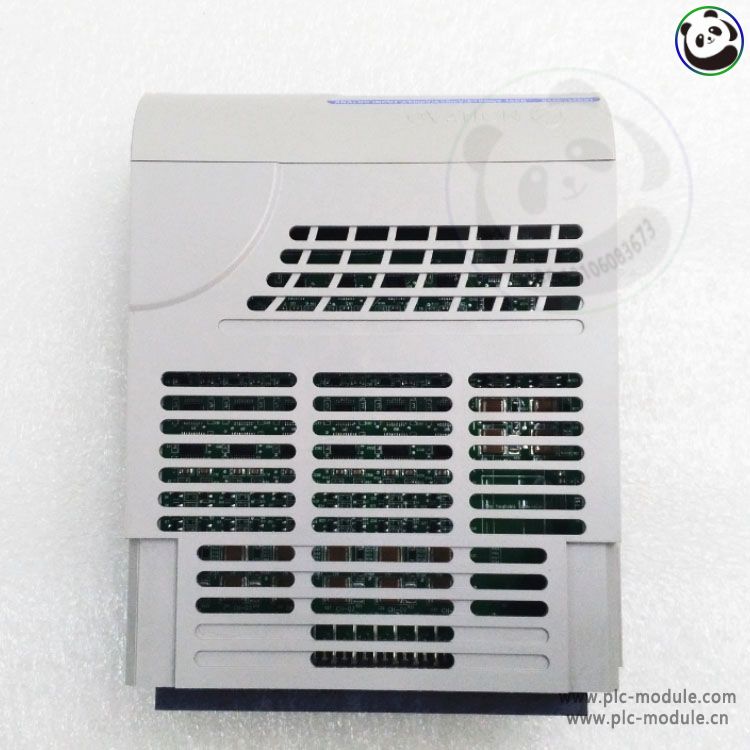

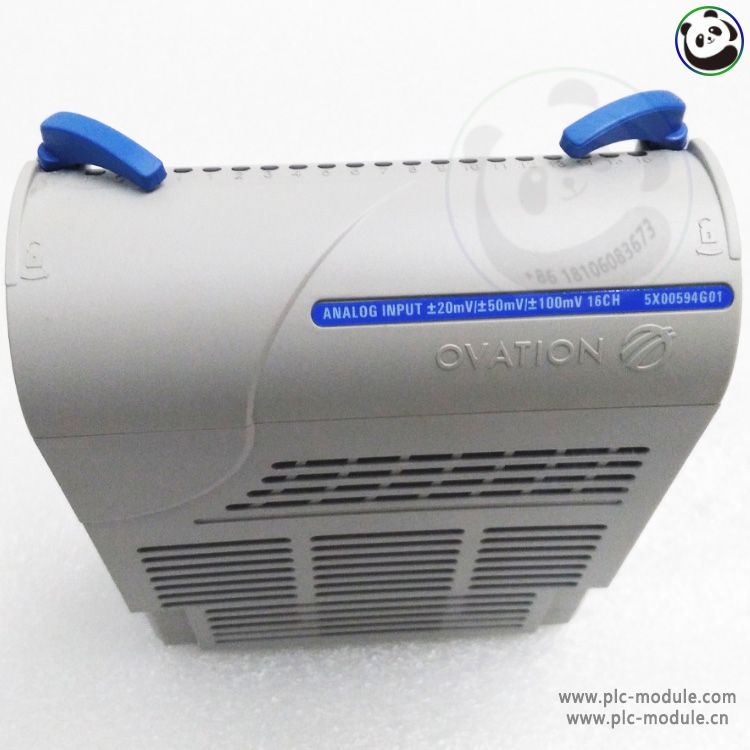

The Emerson Ovation 5X00594G01 is a 16-channel analog input module designed for the Ovation distributed control system (DCS), widely used in power generation, oil & gas, and industrial automation.
Module Overview：
Part Number: 5X00594G01
Type: Analog Input (AI) Module
Channels: 16 single-ended or 8 differential (configurable)
Compatibility: Designed for Emerson Ovation DCS
Key Specifications
| Parameter | Specification |
|---|
| Input Type | Voltage (e.g., 0-10V) / Current (e.g., 4-20mA) / Thermocouple (T/C) / RTD (optional) |
| Resolution | 16-bit (high-precision conversion) |
| Sampling Rate | Configurable (typically 10-100 samples/sec per channel) |
| Isolation | Channel-to-channel & channel-to-system isolation |
| Accuracy | ±0.1% of full scale (typical for voltage/current) |
| Communication | Ovation backplane (PCI-based) |
| Power Supply | 24V DC (module-powered via Ovation rack) |
| Operating Temp. | -20°C to +60°C (industrial-rated) |
Functional Description
1 Signal Processing
2 Ovation Integration
Interfaces with Ovation controllers (e.g., Ovation DPU) via the Ovation backplane.
Real-time data acquisition with timestamping for process control loops.
Supports HART pass-through (if HART-enabled modules are used).
3 Diagnostics & Redundancy
Applications
Power Plants: Boiler control, turbine monitoring.
Oil & Gas: Pressure, flow, and temperature monitoring.
Water Treatment: pH, conductivity, and level sensing.
