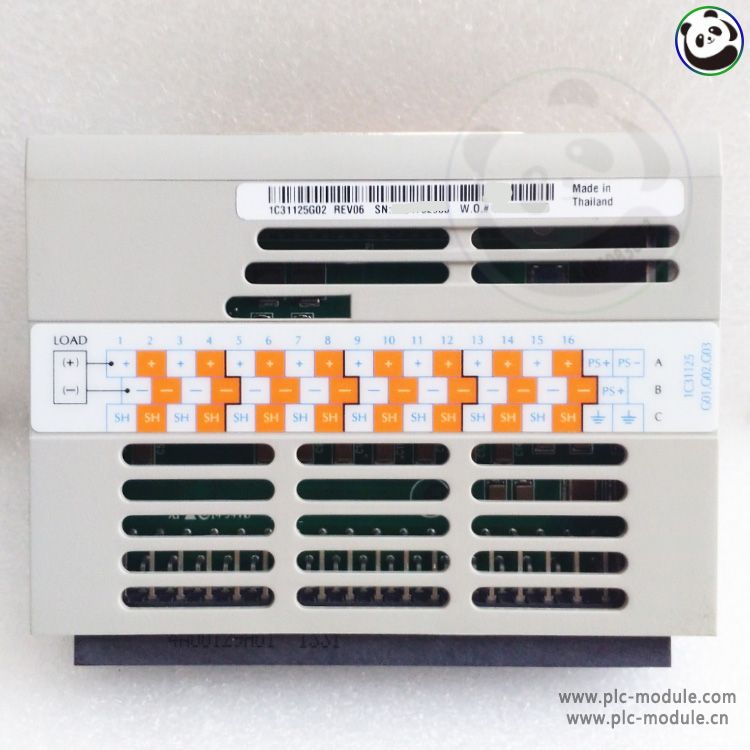

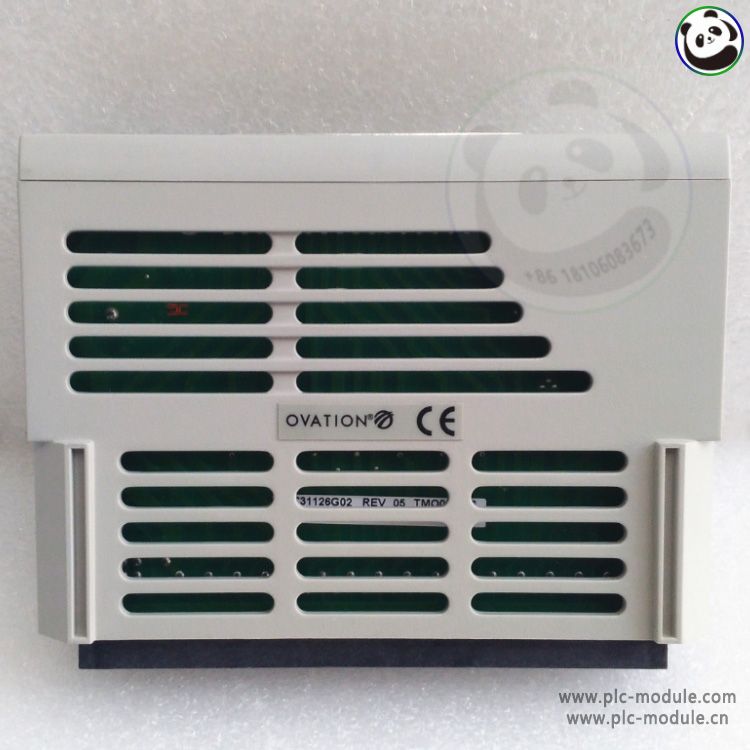

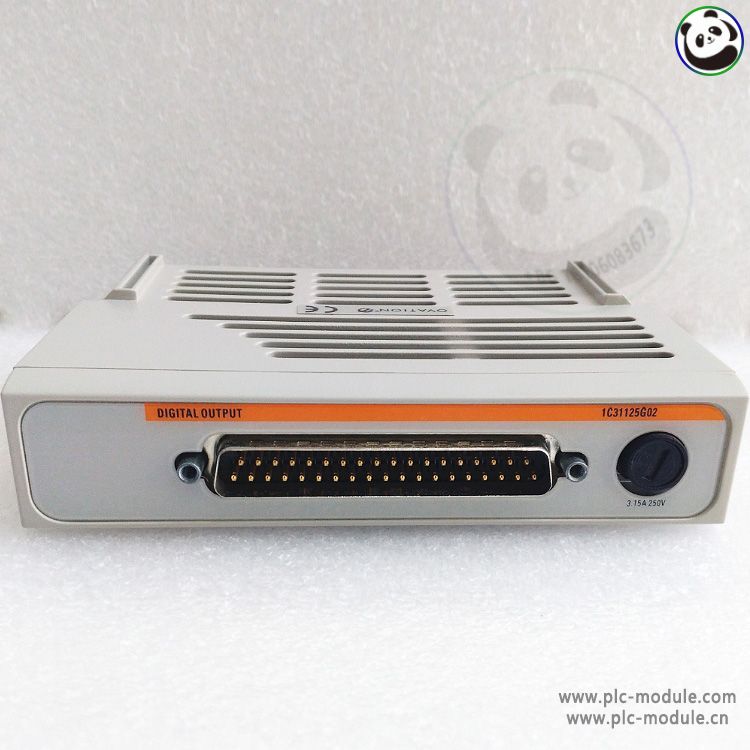

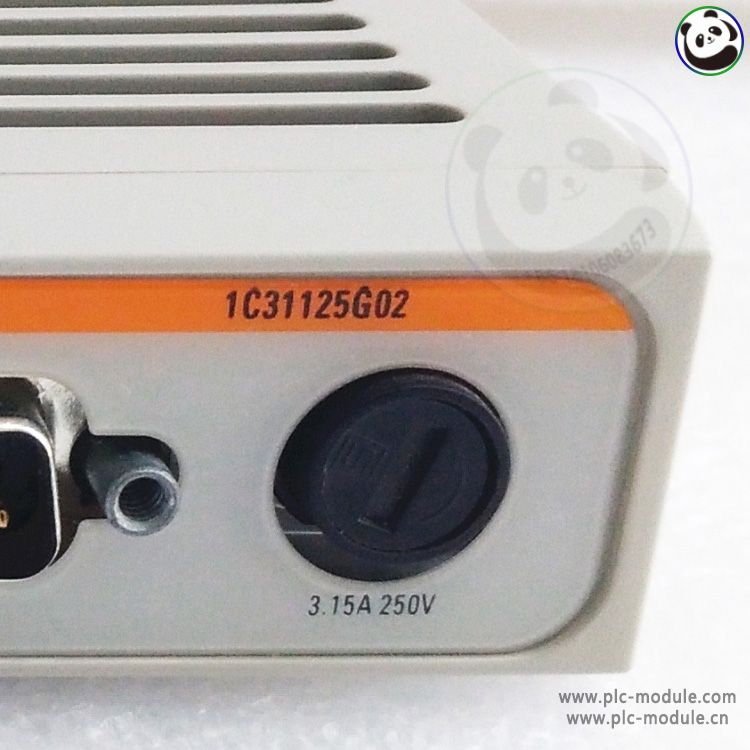

The Emerson Ovation 1C31125G02 is a high-density digital output (DO) module designed for the Ovation Distributed Control System (DCS), used in power generation, oil & gas, and industrial automation applications. This module provides 32 isolated digital output channels for controlling field devices like relays, solenoid valves, and motor starters.

Key Specifications:

• 32-channel isolated digital output

• Voltage range: 5-60V DC per channel (configurable)

• Sourcing or sinking operation (depends on wiring)

• Hot-swappable (in supported Ovation racks)

• LED status indicators per channel (output state & faults)

• Redundant power support (for critical applications)

Wiring & Installation

Terminal Connections

• Uses a removable screw terminal block (check pinout in datasheet).

• Each channel requires:

• Output terminal (connects to field device)

• Common return (COM) (shared or isolated, depending on configuration)

• External power supply (5-60V DC) must be provided for field devices.

Typical Wiring Setup

• For sourcing outputs:

• +V field power → Module output → Device → COM (ground)

• For sinking outputs:

• +V field power → Device → Module output → COM (ground)
