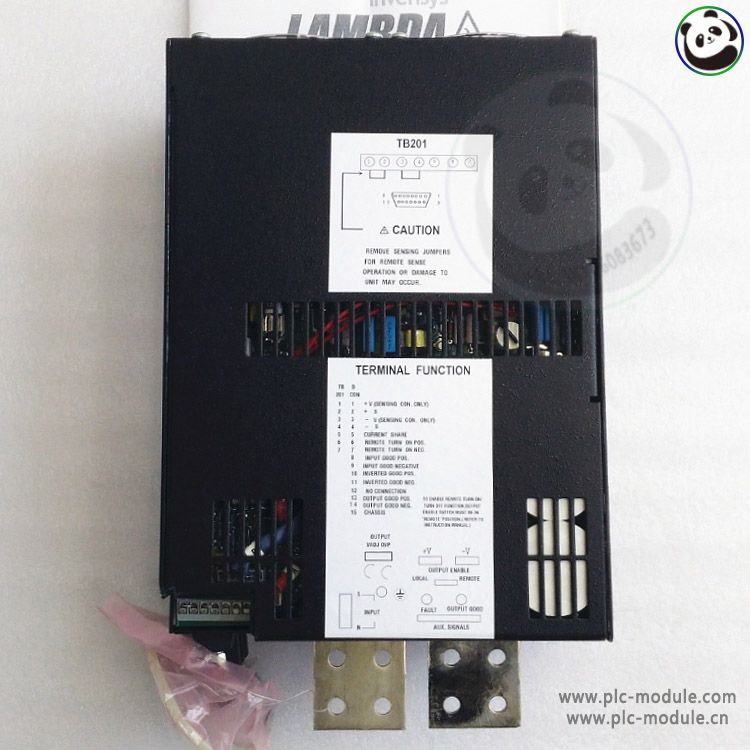

The FOXBORO P0904HN (LZS1500-3FOX) is a high-reliability, industrial-grade power supply module from the LZS/SE-1500 Series, designed specifically for critical process control applications in the Foxboro I/A Series Distributed Control System (DCS).
Technical Specifications (Click to expand)
General Parameters:
Model Number: P0904HN (LZS1500-3FOX)
Series: LZS/SE-1500 Series
Type: Industrial-grade redundant power supply
Application: Foxboro I/A Series DCS
Electrical Characteristics:
Input Voltage: 120/240V AC (auto-ranging)
Input Frequency: 47-63Hz
Output Voltage:
Power Rating: 1500W
Efficiency: >85% (typical)
Ripple & Noise: <1% of output voltage
Environmental Specifications:
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% (non-condensing)
Altitude: Up to 2000m (6562ft)
Protection & Safety:
Overvoltage protection
Overcurrent protection
Short-circuit protection
Over-temperature protection
Safety Certifications: UL, CSA, CE, ATEX compliant
Reliability:
Physical Characteristics:
Dimensions: 89mm × 127mm × 400mm (3.5" × 5" × 15.75")
Weight: 3.2kg (7.05lbs)
Cooling: Forced air cooling with integrated fan
Mounting: 19" rack mountable
Compatibility:
Designed for Foxboro I/A Series DCS
Backward compatible with LZS/SE-1500 series components
Supports parallel operation for redundancy
Regulatory Compliance:
