Electrical Specifications:
✔ Input Voltage: 85-264V AC (47-63Hz) or 120-370V DC (universal compatibility)
✔ Output: 24V DC ±1%, 4.2A continuous (100W max) with low ripple (<150mV)
✔ Efficiency: Up to 92% (minimizes energy waste and heat generation)
✔ Line Regulation: ±0.5% | Load Regulation: ±1% (stable output under fluctuations)
Protections & Reliability:
✔ Overload Protection: 105-150% of rated current (auto-recovery)
✔ Short-Circuit Protection: Hiccup mode (auto-reset)
✔ Overvoltage Protection: 28-32V clamp (safeguards connected devices)
✔ Withstands 300V AC Surge (5s, per EN61000-4-5)
Environmental Durability:
✔ Operating Temperature: -30°C to +70°C (derating linearly above 50°C)
✔ Fanless Design: Natural convection cooling (no moving parts, silent operation)
✔ High MTBF: >300,000 hours (per MIL-HDBK-217F)
Certifications & Safety:
✔ Safety Standards: UL/cUL/TUV/CE (EN/BS EN/IEC 62368-1)
✔ EMC Compliance: EN 61000-6-2 (immunity), EN 61000-6-4 (emissions)
✔ Isolation Voltage: 3kV AC (input-to-output)
Mechanical Design:

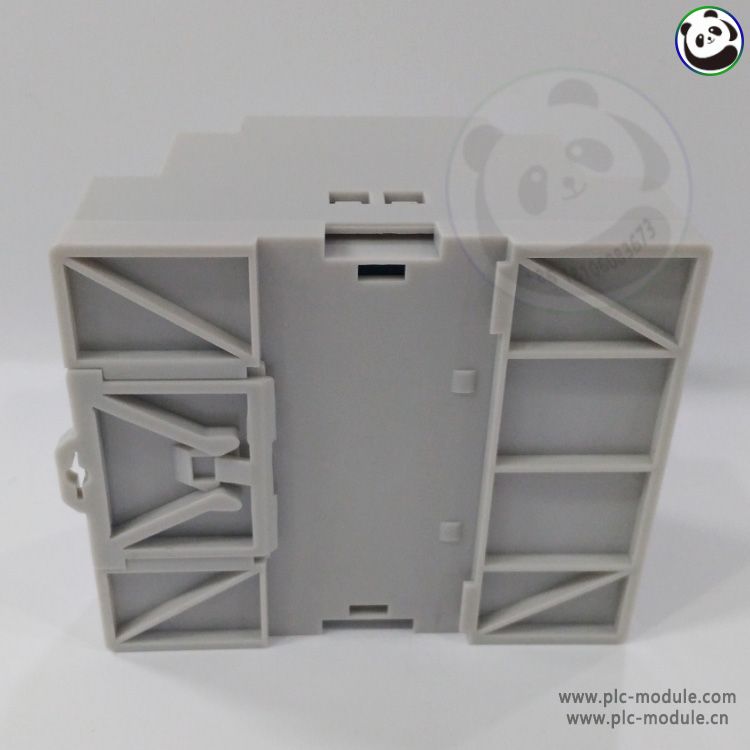

✔ Compact DIN Rail Mounting: Fits TS-35/7.5 or 15 rails
✔ Dimensions: 32mm (W) × 124mm (H) × 115mm (D)
✔ IP20 Rating (basic enclosure protection)
Applications:
✔ Industrial automation (PLCs, sensors, relays)
✔ Control panels, CNC machines, and robotics
✔ Building management (HVAC, lighting, security)
