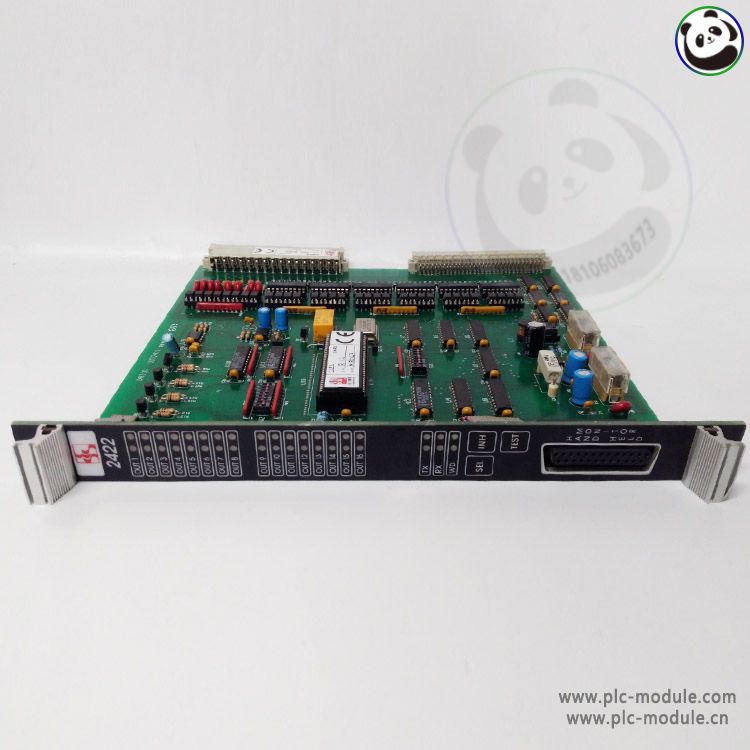

The SES 2422 OUT2422 DAICO PC Board is a high-precision digital-to-analog output control board designed for industrial automation systems. Featuring multi-channel isolated outputs, robust signal conversion, and industrial-grade protection, it ensures accurate and stable performance in harsh environments. With flexible configuration, real-time monitoring, and seamless PLC integration, it is ideal for process control, test equipment, and automated production lines requiring reliable analog signal output.
Product Specifications
Core Specifications:
Output Type: 4/8/16-channel isolated analog outputs (configurable)
Output Range: 0-10V, ±10V, 0/4-20mA (software-selectable per channel)
Resolution: 16-bit high-precision DAC (≤±0.1% FSR accuracy)
Isolation: 2500V DC channel-to-channel and channel-to-system isolation
Performance & Reliability:
High-Speed Update: ≤1ms settling time per channel for dynamic control applications
Drift Stability: <50ppm/°C temperature drift, ensuring long-term accuracy
Noise Immunity: Built-in EMI filtering and galvanic isolation for stable operation in noisy industrial environments
Overload Protection: Automatic current limiting and short-circuit protection on all outputs
System Integration:
Communication Interface: Supports RS-485 (Modbus RTU) and CAN 2.0B for PLC/DCS connectivity
Configuration: Plug-and-play operation with user-adjustable settings via DIP switches or configuration software
Diagnostics: Per-channel status LEDs and open-circuit detection for quick troubleshooting
Mechanical & Environmental:
Operating Temperature: -25°C to +70°C (industrial temperature range)
Vibration Resistance: Complies with IEC 60068-2-6 (5-500Hz, 5g)
PCB Protection: Conformal coating (IP20 equivalent) against humidity and contaminants
Certifications & Compliance:
Safety Standards: CE, UL 61010-1, RoHS compliant
EMC Performance: Meets IEC 61326-1 (industrial immunity and emissions requirements)
Typical Applications:
Process control valve positioning
Test and measurement equipment
Industrial motor speed control
Analog signal simulation systems
