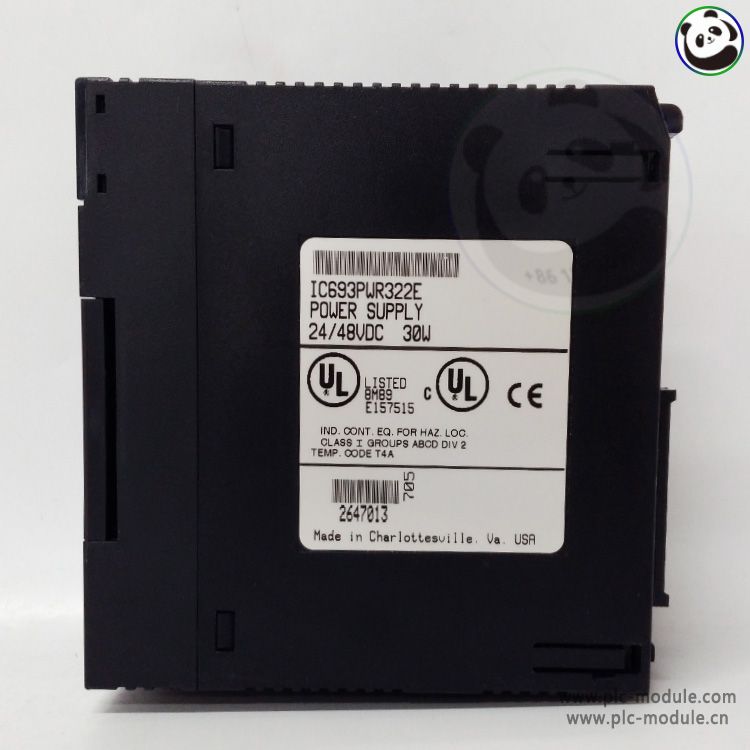

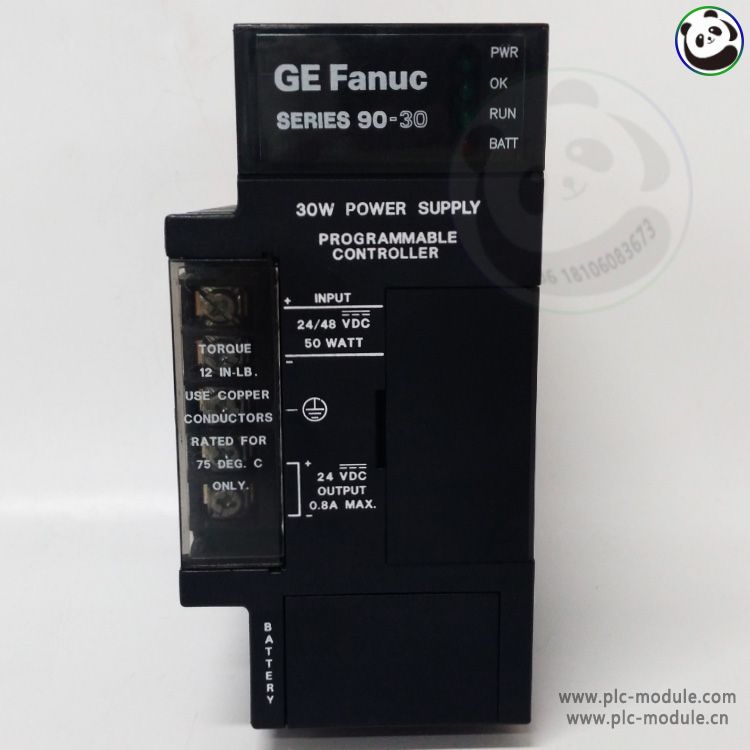

Electrical Specifications:

• Input Voltage: 24VDC nominal (18-32VDC range)

• Input Current: 2.0A max at 24VDC input

• Outputs:

• +5VDC @ 3A (15W) for logic circuits

• +24VDC @ 0.5A (12W) for peripheral devices

• Efficiency: 85% typical at full load

• Ripple Noise: <50mV p-p (5V output), <100mV p-p (24V output)

Protection & Safety:

• Overcurrent Protection: Auto-resetting for both outputs

• Short Circuit Protection: Hiccup mode with automatic recovery

• Reverse Polarity Protection: Input diode protection

• Isolation Voltage: 1500VAC input-to-output

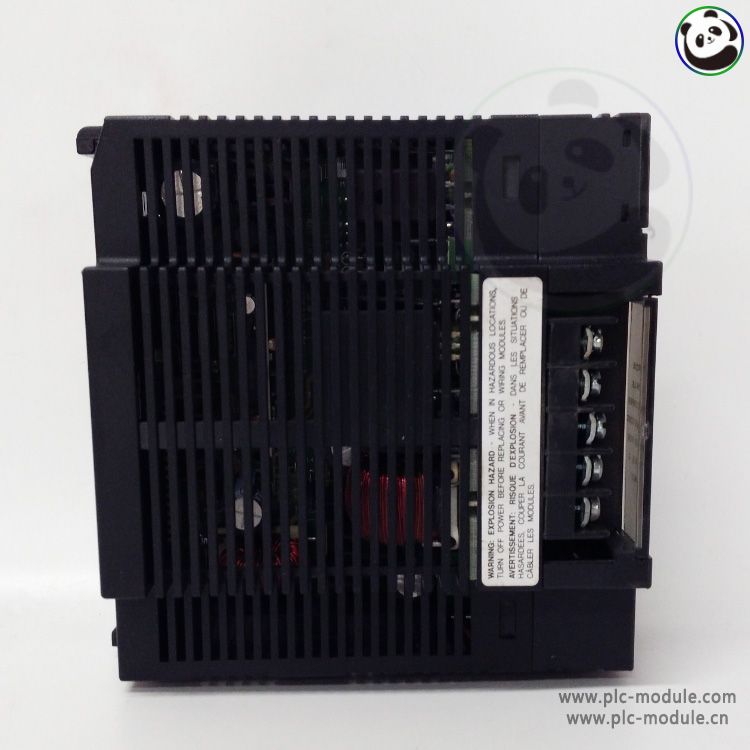

Physical Characteristics:

• Dimensions: 60mm (H) x 108mm (W) x 80mm (D)

• Mounting: Standard 35mm DIN rail (EN 50022 compliant)

• Weight: 450g

• Connector: Removable screw terminal block

Environmental Ratings:

• Operating Temperature: -20°C to +60°C (derating above 40°C)

• Storage Temperature: -40°C to +85°C

• Humidity: 5-95% non-condensing

• Vibration Resistance: 5-500Hz, 5g acceleration (IEC 60068-2-6)

• Shock Resistance: 30g, 11ms duration (IEC 60068-2-27)

Compliance & Certifications:

• Safety Standards: UL 508, CSA C22.2 No. 142, EN 61131-2

• EMC: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)

• RoHS Compliance: Directive 2011/65/EU

System Integration:

• Compatible Racks: Fits all GE Series 90-30 baseplates (IC693CHSxxx series)

• LED Indicators:

• Power On (green)

• Fault (red)

• Backplane Current: Supports up to 1.5A additional 5V load

Key Advantages:

1. Dual Output Design: Simultaneously powers CPU and field devices

2. Wide Input Range: Tolerates voltage fluctuations common in industrial environments

3. Maintenance-Free: No replaceable fuses or batteries required

4. Proven Reliability: MTBF >500,000 hours per MIL-HDBK-217F

Typical Applications:

• Discrete manufacturing control systems

• Material handling equipment

• Packaging machinery

• Process automation
