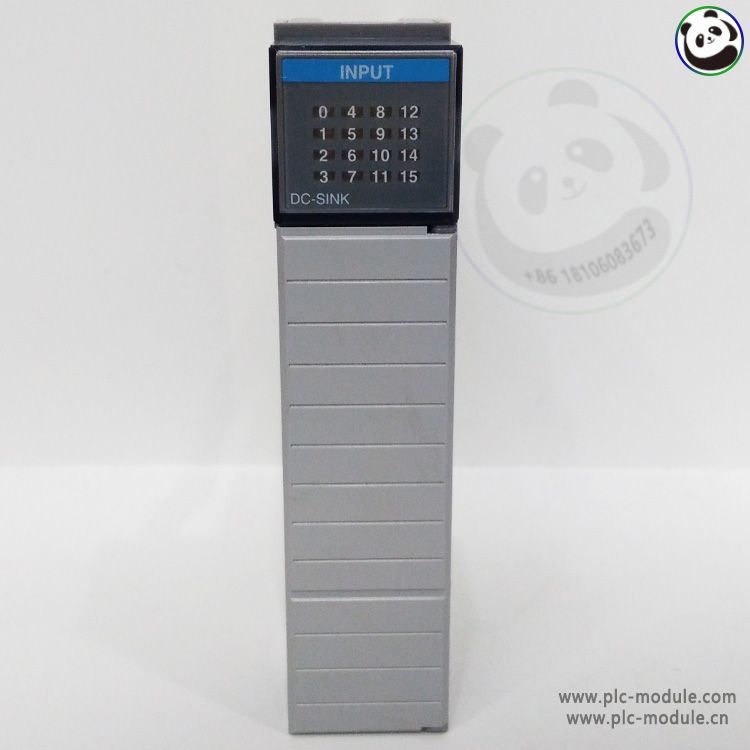

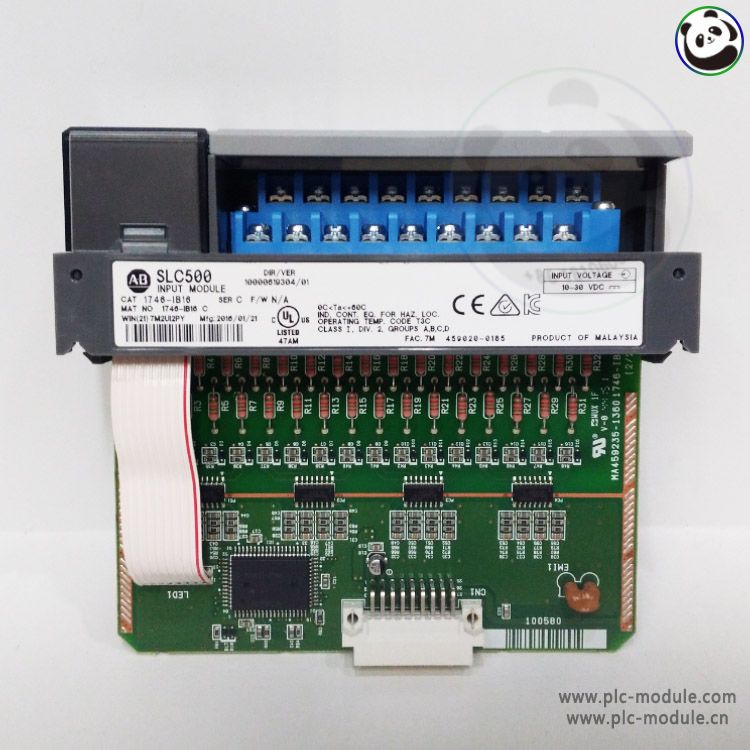

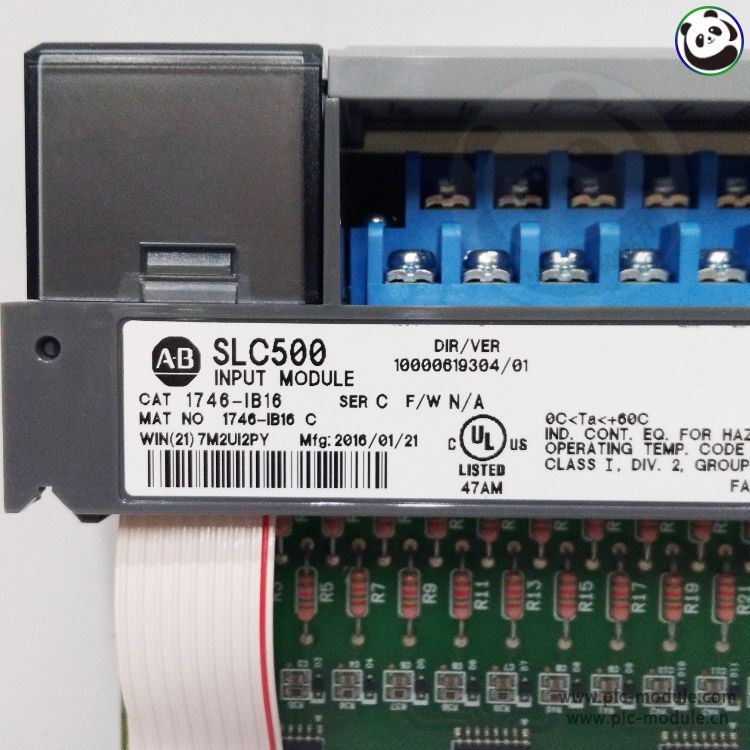

A-B 1746-IB16 SLC500 INPUT MODULE 1746IB16

A-B 1746-IB16 SLC500 INPUT MODULE 1746IB16

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：panda@xiongbaindustrial.com

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

The A-B 1746-IB16 is a 16-point digital input module designed for Allen-Bradley’s SLC 500 programmable logic controller (PLC) system. It provides high-speed, reliable 24V DC sinking input connectivity for industrial automation. With LED status indicators, robust electrical isolation, and compatibility with SLC 500 backplanes, this module ensures seamless integration and real-time monitoring of discrete sensors and switches in demanding environments.

Product Specifications

Input Type: 16-channel, 24V DC sinking inputs (compatible with standard industrial sensors and switches).
Voltage Range: 10-31V DC per input, with 5mA typical current draw.
Isolation: 500V AC optical isolation between field inputs and logic side for noise immunity and safety.
Response Time: <1 ms per point for high-speed signal detection.
Status Indicators: Individual LED indicators per channel for real-time input status monitoring.
Backplane Compatibility: Works with SLC 500 fixed and modular controllers (5V DC backplane powered).
Wiring: Removable terminal block for easy installation and maintenance.
Environmental Rating: Operates in 0-60°C (32-140°F) with 30g shock and 5g vibration resistance.
Certifications: UL, CE, ATEX (for hazardous locations, depending on model) compliant.
Application Use: Ideal for machine control, conveyor systems, and process automation where reliable digital input handling is critical.
