Basic Specifications:
Manufacturer: Schneider Electric (ELAU)

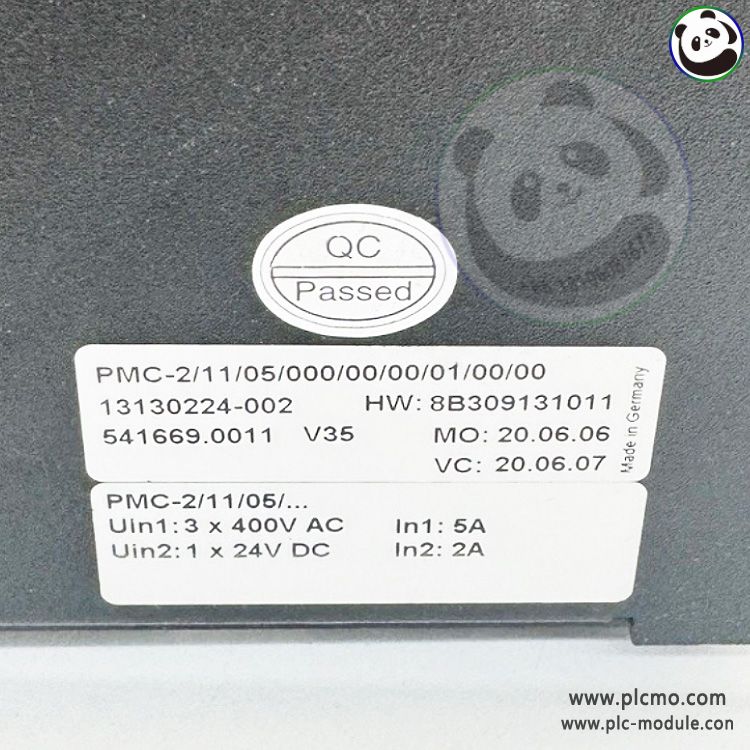

Model: PMC-2/11/05/000/00/00/01/00/00 (13130224-002)
Type: Multi-axis Positioning Controller
Application: Packaging machinery, robotics, CNC, and advanced automation systems
Key Features & Performance:
✔ Advanced Motion Control – Supports 4-8 axes of synchronized servo control with nanoscale precision
✔ High-Speed Processing – 1kHz+ servo update rate for dynamic positioning applications
✔ Flexible I/O Configuration – 24+ digital I/O points with optional expansion capabilities
✔ Smart Tuning Algorithms – Automatic servo tuning with anti-vibration technology
✔ Real-Time Diagnostics – Comprehensive fault detection and predictive maintenance features
Technical Specifications:
Control Axes: Configurable from 2 to 8 axes
Communication Protocols: EtherCAT, CANopen, PROFIBUS, and Ethernet/IP
Encoder Interfaces: Supports absolute/incr. encoders (17-bit+ resolution)
Power Supply: 24VDC ±10% (3A max)
Operating Temperature: 0°C to 55°C (32°F to 131°F)
System Integration:
Software Compatibility: Works with PacDrive 3 automation suite
Safety Features: STO (Safe Torque Off) compliant to SIL3/PLe
Modular Design: Hot-swappable modules for field maintenance
Reliability & Compliance:
✔ Industrial Robustness: 50G shock resistance and 5G vibration tolerance
✔ Certifications: CE, UL, cULus, IEC 61800 standards
