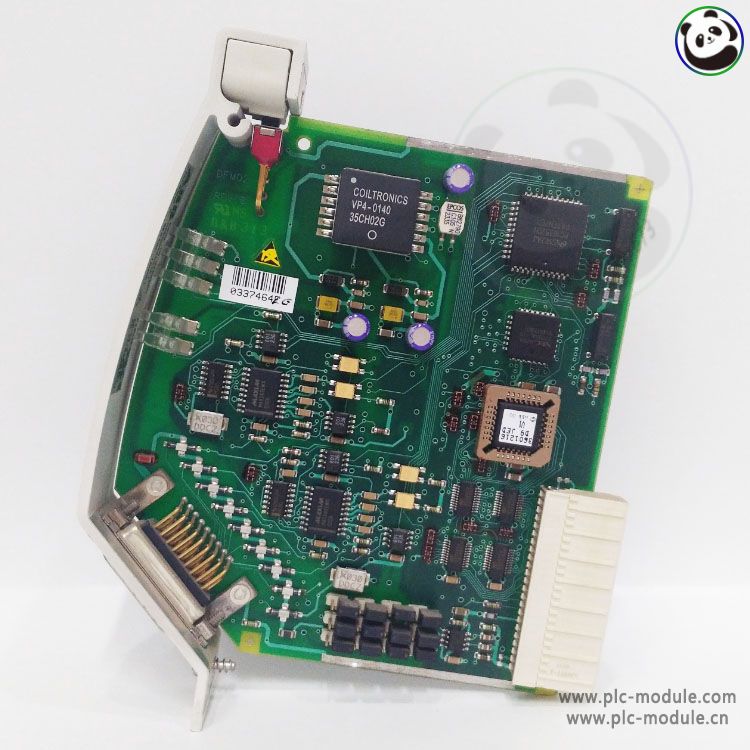

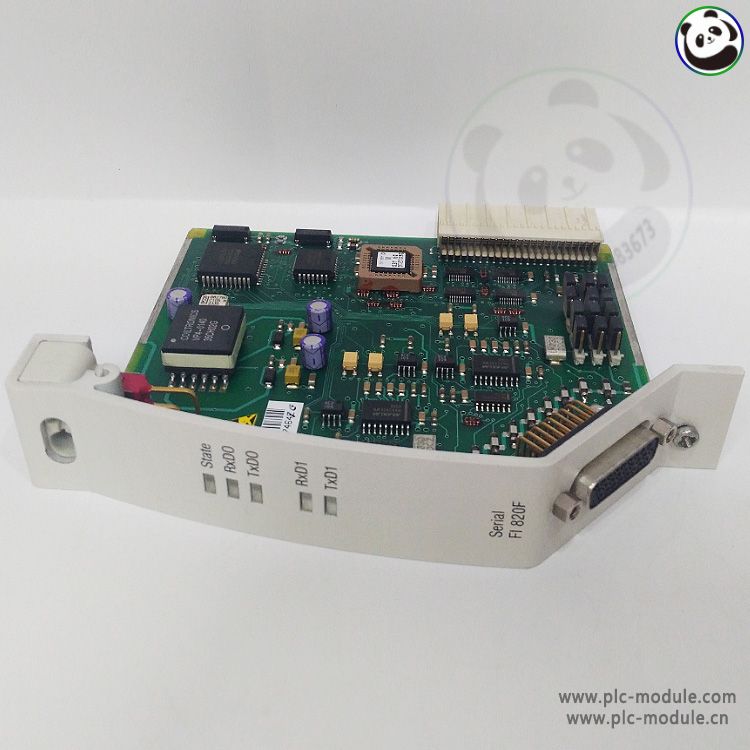

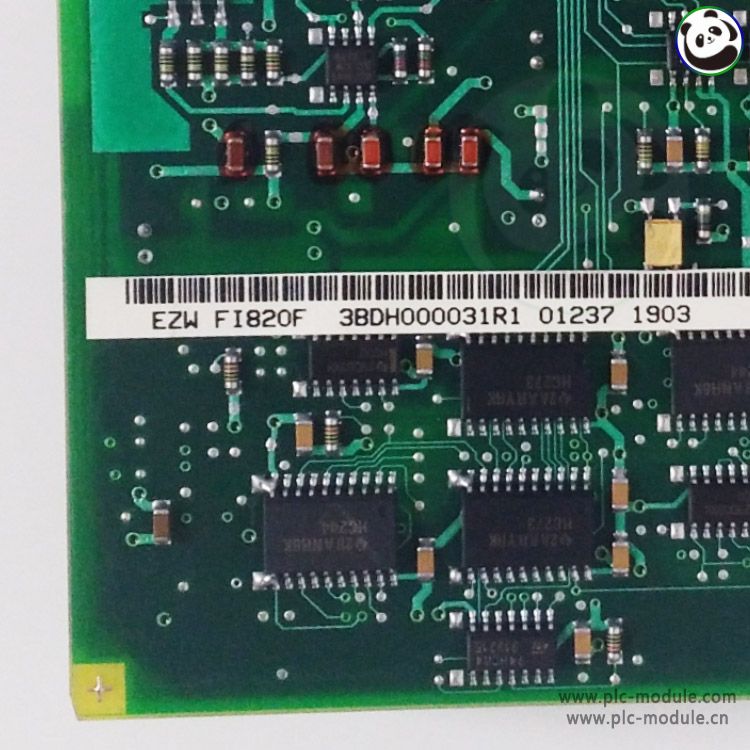

The ABB FI820F (3BDH000031R1) is a versatile PROFIBUS DP fieldbus module compatible with both AC800F controllers and PM802F/PM803F process managers. Supporting 12 Mbps communication speed, it enables robust data exchange in industrial networks. Featuring galvanic isolation, diagnostic LEDs, and hot-swappable design, it's engineered for reliable process automation in power, oil & gas, and chemical applications.
Product Specifications
Communication Performance
Full PROFIBUS DP-V1 compliance (IEC 61158/EN 50170 standards)
Configurable baud rates from 9.6 kbps to 12 Mbps (auto-negotiation)
244 bytes input/output data capacity per node
Supports DP-V1 acyclic services for parameterization and diagnostics
Hardware Design
Dual-interface compatibility:
500V AC galvanic isolation (fieldbus to system)
Hot-swappable design for maintenance without process interruption
Diagnostics & Monitoring
Environmental Specifications
Extended temperature range: -25°C to +70°C
95% humidity tolerance (non-condensing)
Vibration resistant: 5-150Hz, 1mm amplitude (IEC 60068-2-6)
Shock resistant: 15g, 11ms (IEC 60068-2-27)
Certifications & Safety
CE, UL, cUL, ATEX certifications available
EMC immunity: EN 61000-6-2
EMC emissions: EN 61000-6-4
Application Benefits
Simplified network architecture with direct controller integration
Reduced commissioning time with auto-baud rate detection
Enhanced system availability through hot-swap capability
Future-proof design supporting existing and new installations
