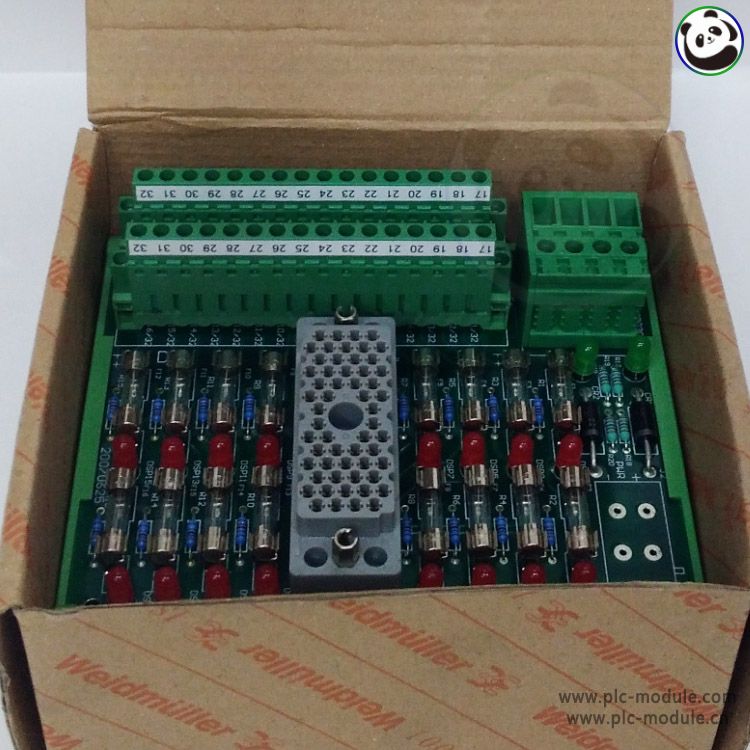

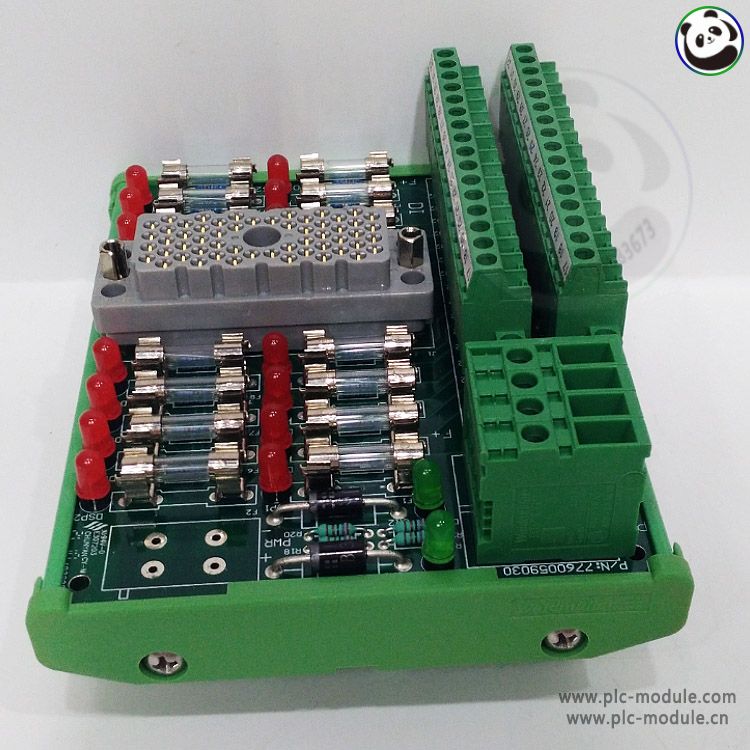

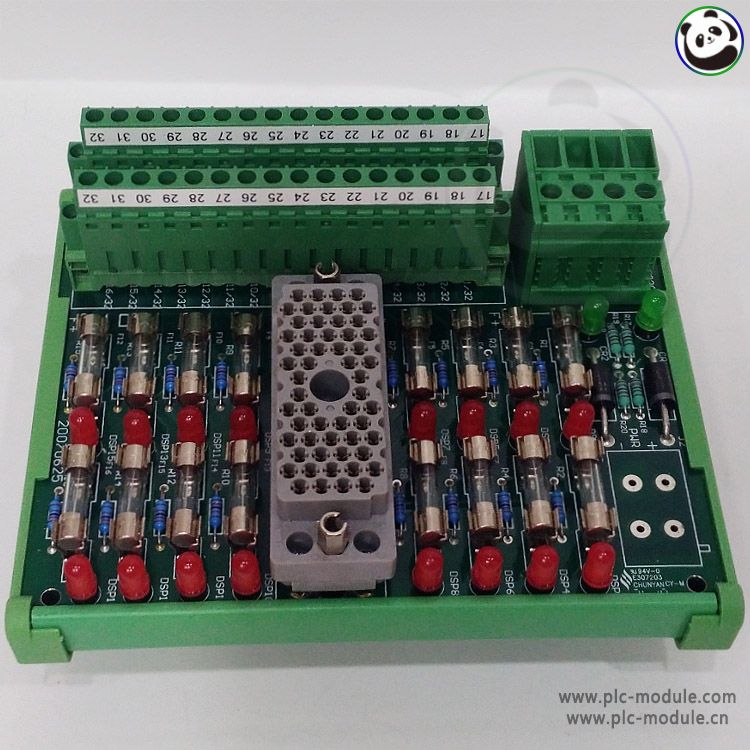

The TRICONEX/Weidmüller 9563-810 is a high-reliability terminal board designed for critical safety and control systems. Compatible with Triconex safety instrumented systems (SIS), it provides secure signal termination and distribution for industrial automation applications. Featuring robust construction, clear marking, and vibration-resistant contacts, this terminal board ensures dependable performance in hazardous environments like oil & gas, chemical plants, and power generation facilities.
Product Specifications
General Specifications
Type: DIN-rail mounted terminal board
Poles: 24-position (specific configuration varies by model)
Wire Range: 0.2-2.5mm² (AWG 24-12)
Rated Voltage: 300V AC/DC
Current Rating: 8A per contact
Mechanical Design
Housing Material: Flame-retardant polyamide (UL94 V-0)
Contact Material: Electropolished stainless steel
Mounting: Standard 35mm DIN rail
Marking: Laser-etched permanent identification
Tool-less Operation: Spring-clamp technology for fast wiring
Electrical Performance
Isolation Voltage: 1500V AC between circuits
Contact Resistance: <5mΩ initially
Dielectric Strength: 4kV (50Hz, 1min)
Screw Torque: 0.5-0.6Nm (spring-clamp version)
Environmental Ratings
Operating Temperature: -40°C to +100°C
Vibration Resistance: 5-150Hz, 5g acceleration
Shock Resistance: 30g, 11ms duration
Protection Class: IP20 (higher available with covers)
Safety Certifications
System Compatibility
Triconex Integration: Designed for 3008/3708A/3805E systems
Fieldbus Support: Compatible with PROFIBUS PA/DP wiring
Safety Systems: SIL3 capable when used in approved configurations
