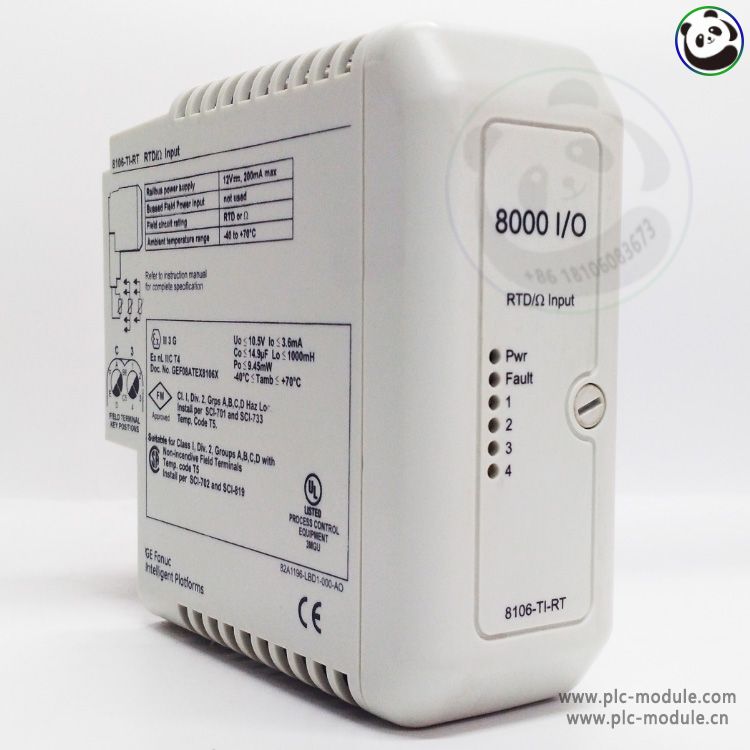

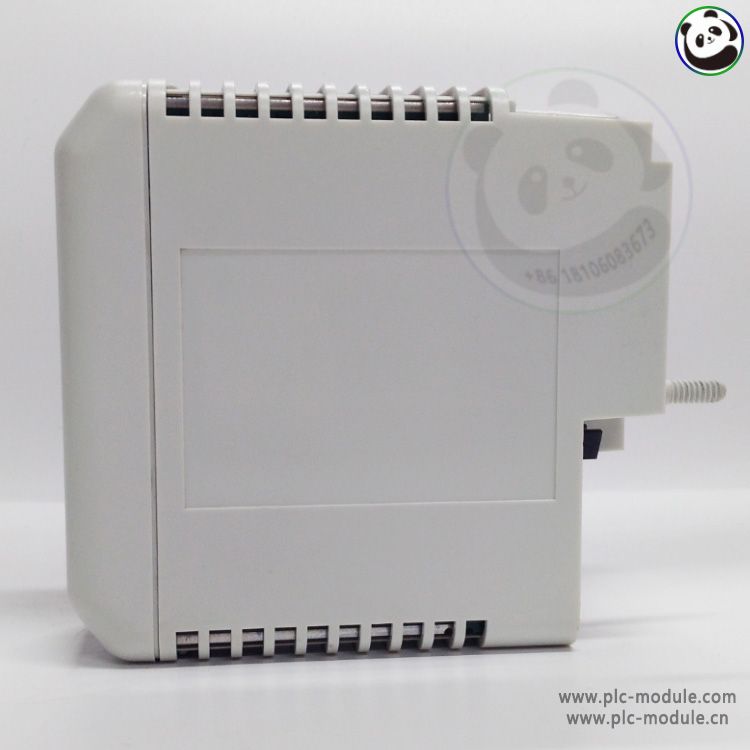

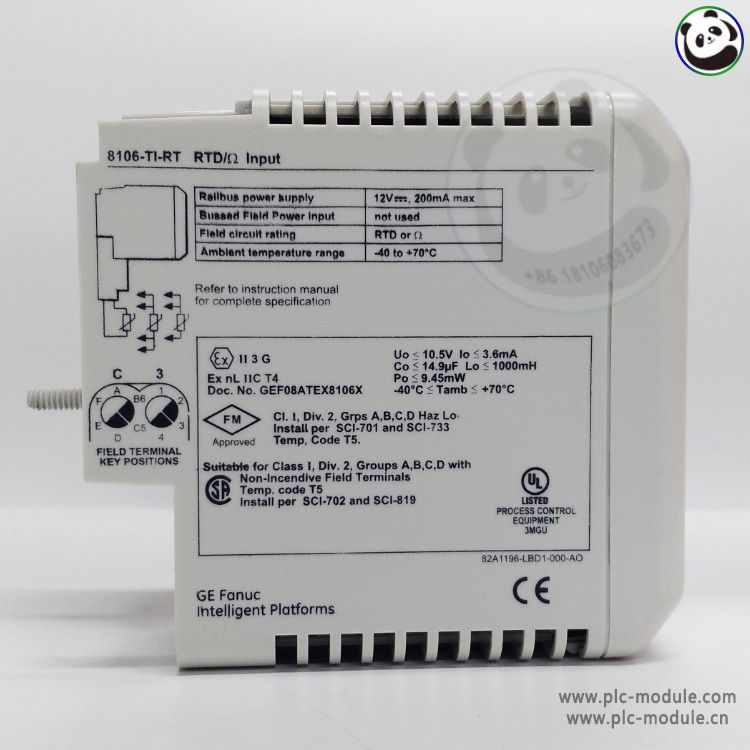

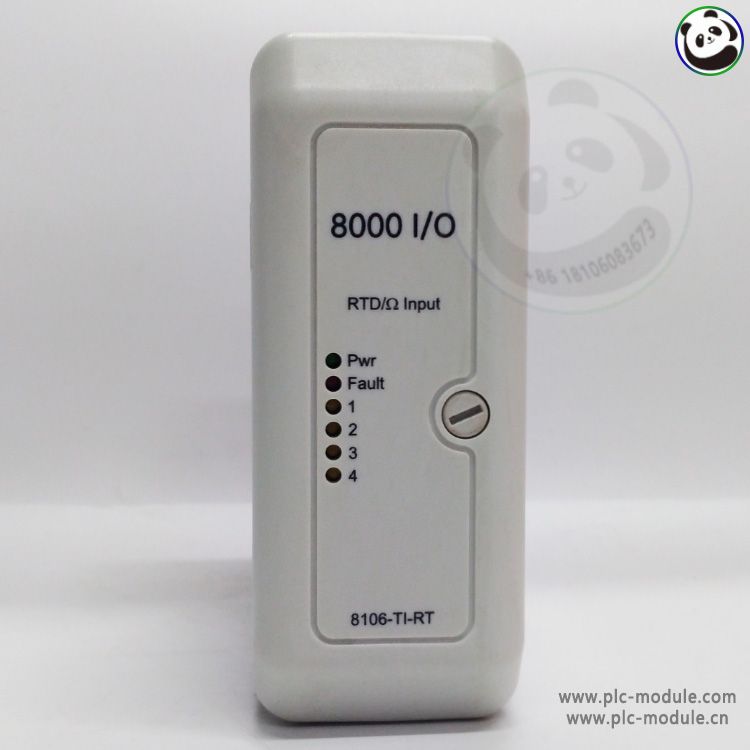

The GE 8106-TI-RT is an RTD/Resistance (Ω) input module from GE's MTL8000 I/O Series, designed for precision temperature and resistance measurements in industrial automation. It supports 2/3/4-wire RTDs (Pt100, Ni120, Cu10) and ohmic inputs, integrating seamlessly with Mark VIe, RX3i, and VersaMax systems. With high accuracy, galvanic isolation, and robust diagnostics, it ensures reliable performance in power, oil & gas, and process control applications.
Product Specifications
General Specifications:
Functional Features:
✅ 8-Channel RTD/Ω Input – Supports:
RTD Types: Pt100, Pt200, Ni120, Cu10 (2/3/4-wire configurations).
Resistance Range: 0Ω to 400Ω (configurable).
✅ High Accuracy (±0.1°C for RTD, ±0.1% FS for Ω) – 16-bit resolution for precise measurements.
✅ Galvanic Isolation (1500V AC) – Prevents ground loops and EMI interference.
✅ Built-in Linearization & Diagnostics – Auto-compensates for lead resistance; detects open circuit, short circuit, and sensor faults.
✅ Hot-Swappable – Field-replaceable without system shutdown.
Electrical & Environmental Specs:
Excitation Current: 0.5mA or 1mA (selectable per channel).
Update Rate: 100ms per channel (typical for RTD applications).
Operating Temperature: -40°C to +70°C (industrial-grade durability).
Certifications: ATEX, IECEx, UL, CE (hazardous area compliance).
Installation & Integration:
Mounting: DIN-rail or panel-mounted.
Connector Type: Removable screw terminals.
Communication: Backplane-compatible with GE’s VersaBus+ or PCIe.
Typical Applications:
Power Plant Monitoring (turbine bearing/winding temps).
Oil & Gas (pipeline/refinery temperature sensing).
Chemical Processing (reactor/resistance-based measurements).
