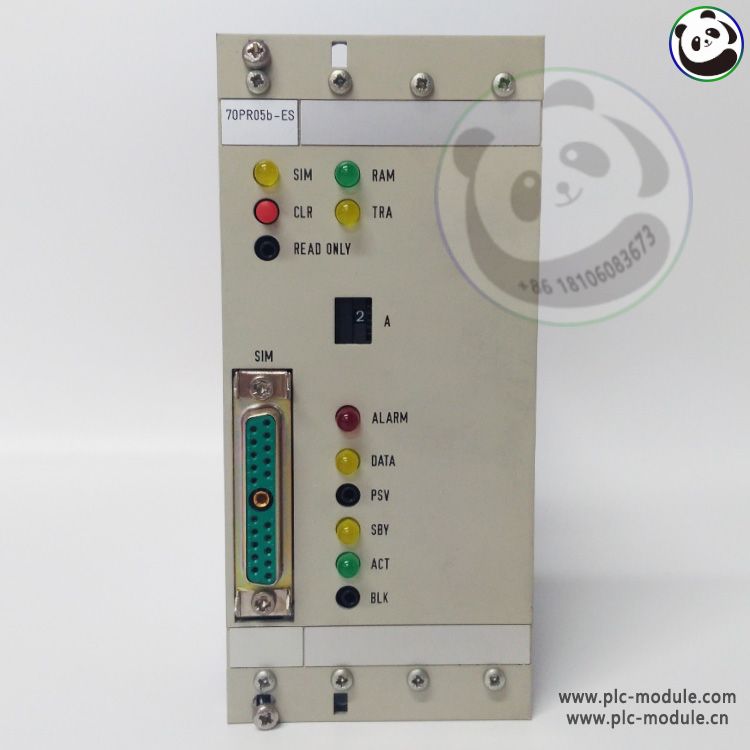

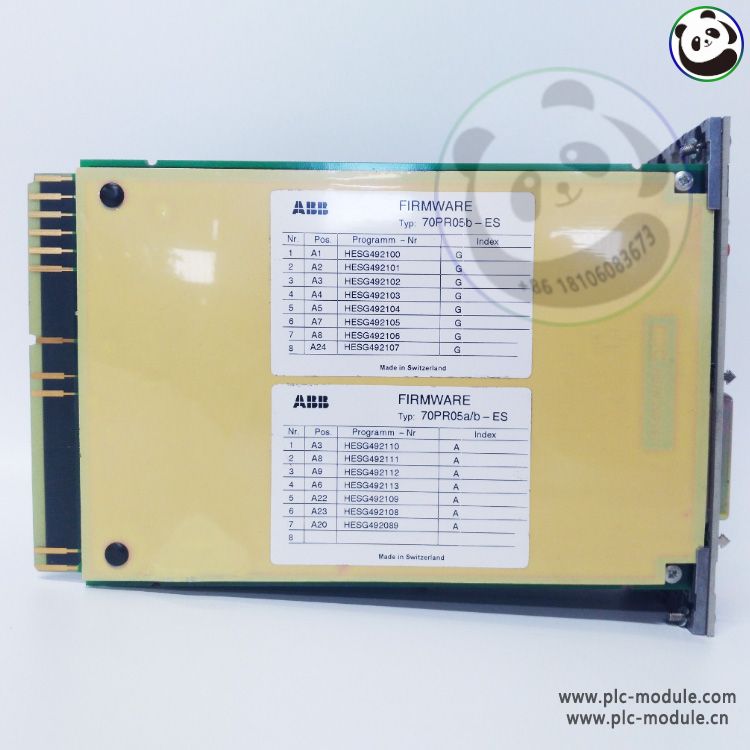

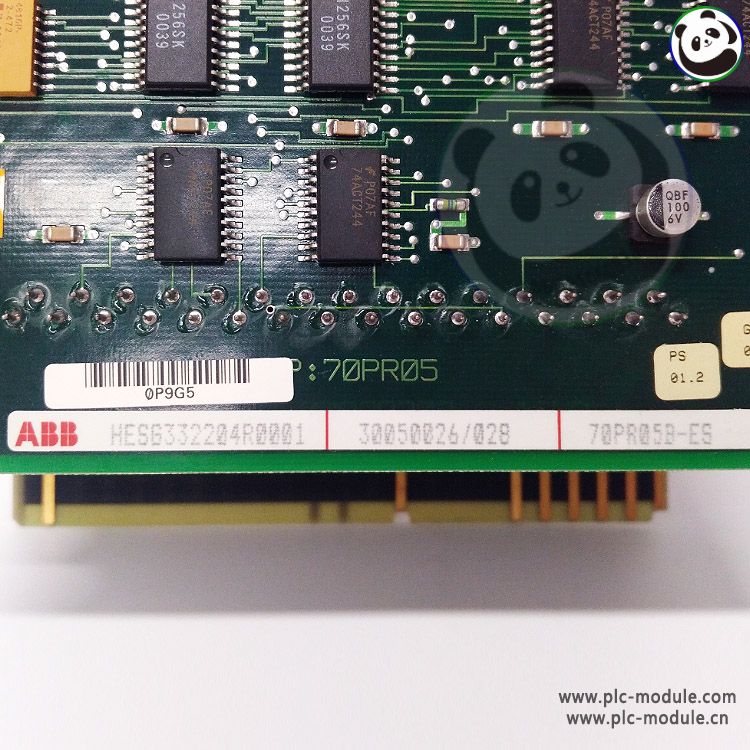

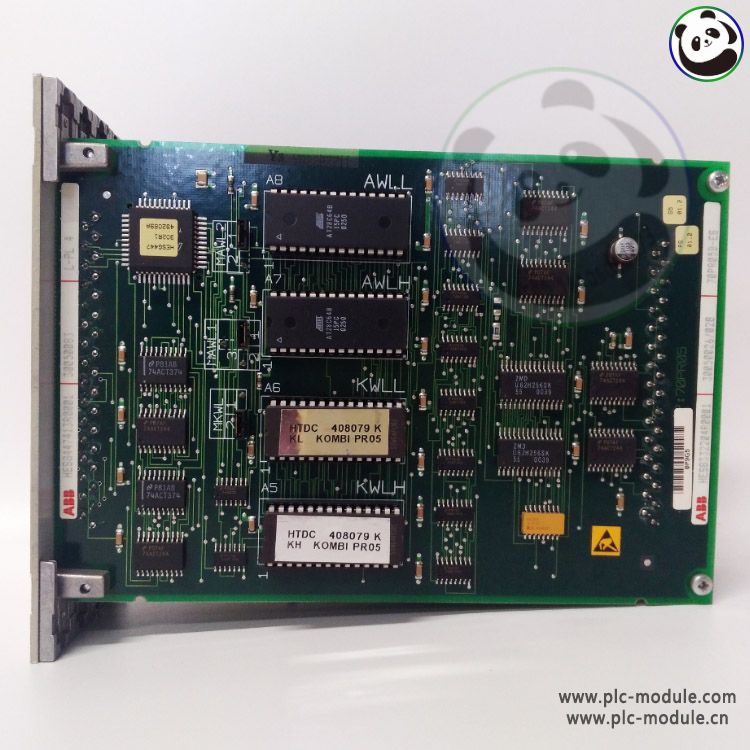

ABB 70PR05B-ES (HESG332204R0001) is a high-performance printed circuit board designed for ABB's industrial control systems. This robust PCB module features advanced signal processing capabilities, reliable power management, and secure connectivity options. Engineered for critical automation applications, it ensures stable operation in demanding environments with comprehensive protection against electrical disturbances. The board supports modular expansion and seamless integration with ABB's control architectures.
Product Specifications
General Specifications:
Manufacturer Part Number: 70PR05B-ES
Alternate Part Number: HESG332204R0001
Product Type: Industrial Control PCB
Manufacturer: ABB
Application: Industrial automation systems
Technical Specifications:
Operating Voltage: 24V DC ±10%
Power Consumption: <15W typical
Operating Frequency: 50/60Hz compatible
Signal Processing: 16-bit resolution
Isolation: 2500V AC between circuits
MTBF: >100,000 hours
Functional Features:
Multi-layer PCB design with EMI shielding
Surface-mount technology components
On-board diagnostics with status LEDs
Fail-safe circuit protection
Hot-swap capable (with proper procedures)
Real-time clock functionality
Communication Interfaces:
Environmental Specifications:
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5-95% non-condensing
Vibration Resistance: 5g (10-500Hz)
Shock Resistance: 15g (11ms duration)
Pollution Degree: 2
Safety & Compliance:
CE Marked
UL Recognized Component
RoHS 3 Compliant
REACH SVHC Compliant
IEC 61131-2 Certified
Mechanical Specifications:
Dimensions: 150mm × 100mm × 25mm
Weight: 200g ±10%
Mounting: DIN rail or panel mount
Connector Type: Industrial-grade screw terminals
Application Areas:
Process control systems
Power distribution automation
Motor control centers
Industrial machinery control
Building automation systems
