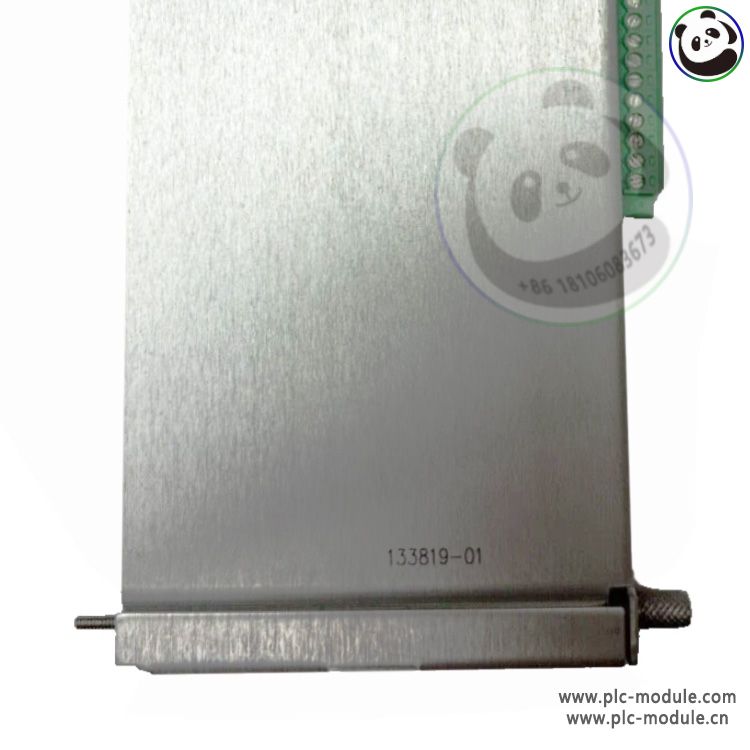

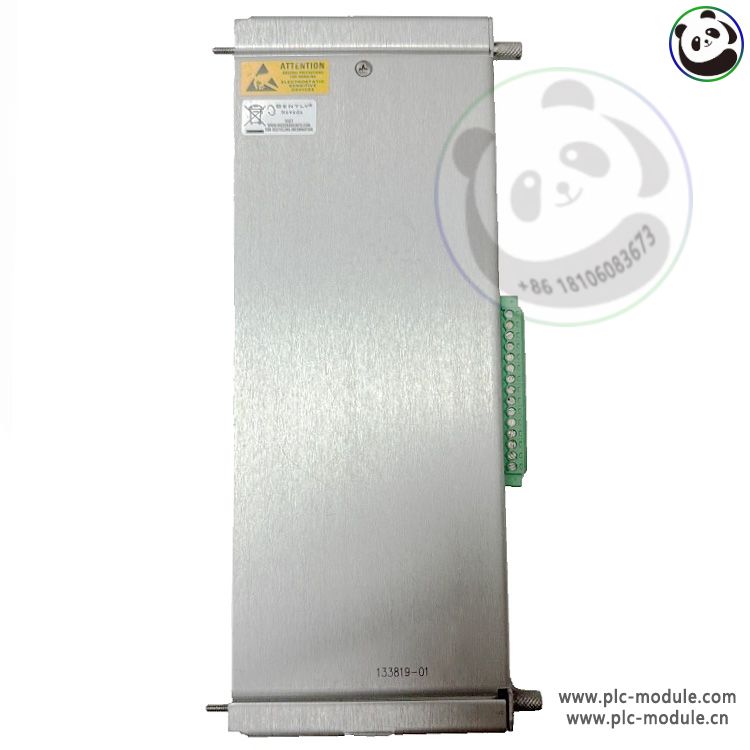

Bently Nevada 133819-01 is a high-precision RTD/TC temperature I/O module designed for critical machinery monitoring. It supports multiple sensor types (RTD, thermocouples) with isolated channels for accurate temperature measurement in turbines, compressors, and rotating equipment. Featuring robust industrial design and seamless integration with Bently Nevada's condition monitoring systems, it ensures reliable performance in harsh environments like power plants and oil refineries.
Product Specifications
General Specifications:
Model: 133819-01
Type: Temperature Input Module (RTD/TC)
Manufacturer: Bently Nevada (Baker Hughes)
Compatibility: 3500/22M, 3500/92 monitoring systems
Input Channels & Sensor Support:
Channels: 4 isolated inputs (configurable per channel)
RTD Types: Pt100, Pt200, Pt1000 (2/3/4-wire)
Thermocouples: J, K, T, E, R, S, B, N
Measurement Range:
Accuracy: ±0.1% FS (RTD), ±1°C (TC)
Signal Processing & Isolation:
A/D Resolution: 16-bit
Channel Isolation: 1500V RMS (channel-to-channel)
Update Rate: 100ms per channel
Linearization: Built-in for TC/RTD
Communication & Integration:
Protocol: Proprietary (3500 framework)
Connector: Front-accessible screw terminals
Diagnostics: Open-circuit/short-circuit detection
Environmental & Mechanical:
Operating Temp: -40°C to +85°C
Humidity: 0–95% non-condensing
Vibration: 5g (10–2000Hz per API 670)
Mounting: 3500 rack-compatible
Certifications & Compliance:
Applications:
Turbine Monitoring: Bearing/oil temperature
Compressors: Casing/process temp
Power Generation: Critical asset protection
