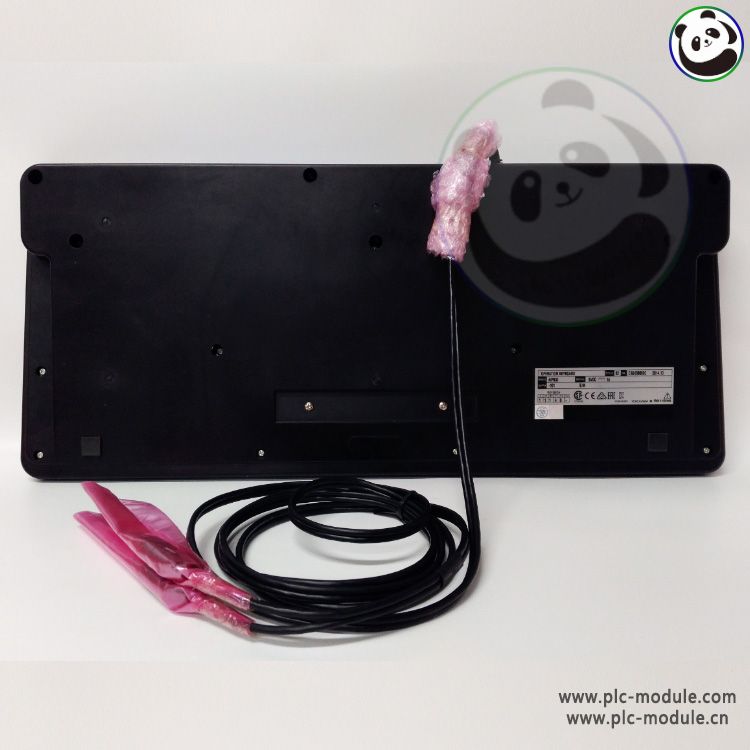

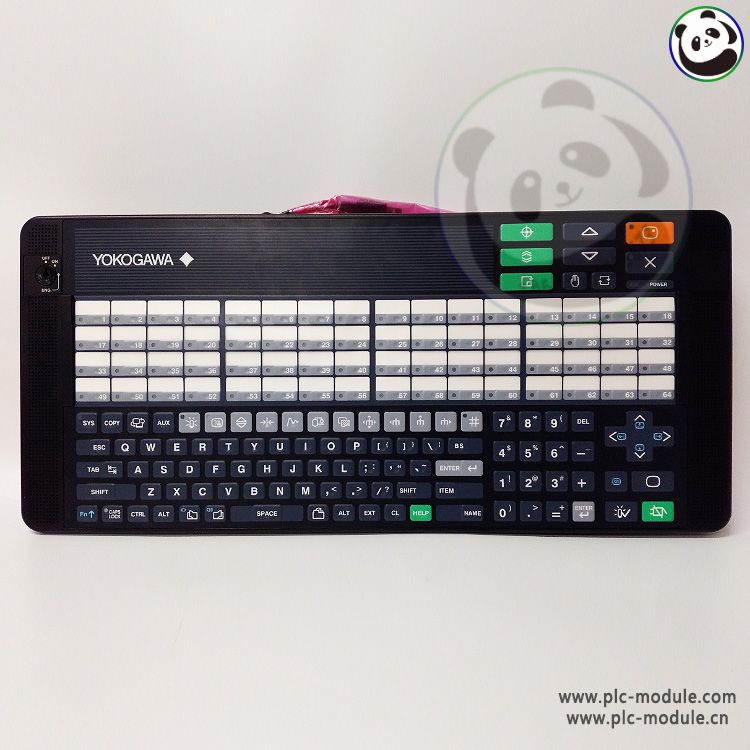

YOKOGAWA AIP830-101 S2 Operation Keyboard is a rugged industrial HMI interface designed for CENTUM VP and CS 3000 DCS systems. Featuring a durable membrane keypad with tactile feedback and LED indicators, it ensures reliable operation in harsh plant environments. With NEMA 4X/IP65 protection and intuitive layout, it provides efficient process control for critical industrial applications.
Product Specifications
Core Specifications

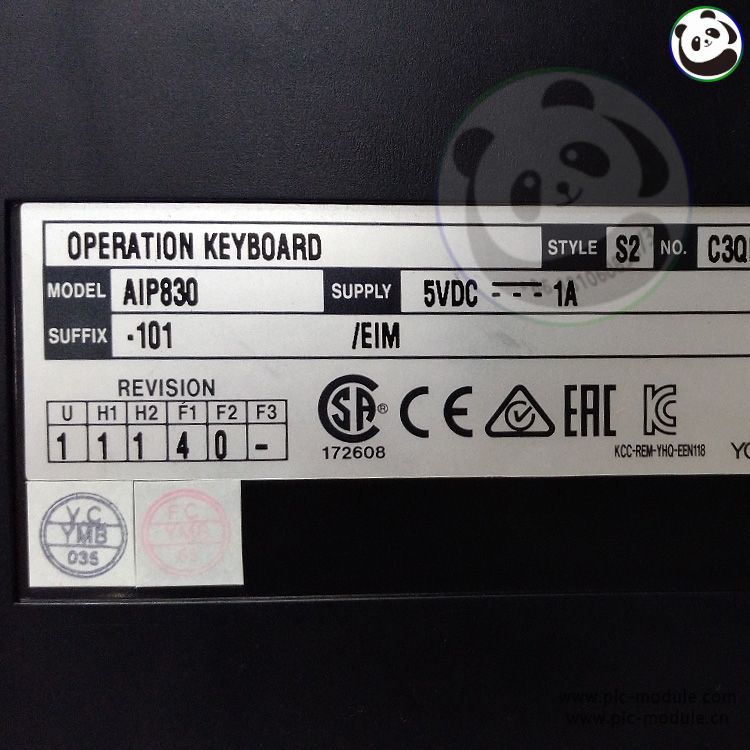

Model: AIP830-101 S2 (Yokogawa P/N: AIP830-101)
Compatibility: CENTUM VP/CS 3000 DCS
Keyboard Type: Industrial membrane switch
Protection Rating: NEMA 4X/IP65 (dust-tight & water-resistant)
Operating Temp: -20°C to +60°C
Design & Usability
Key Layout: 58-key optimized for process control (including function keys)
Tactile Feedback: Positive-click mechanism (1M+ press life cycle)
Visual Indicators: 12 LED status lights (red/green)
Mounting: Panel-mounted with stainless steel bezel
Electrical Characteristics
Connection: RS-422/485 via 9-pin D-sub connector
Power Supply: 24V DC (±10%) from DCS
Current Draw: <100mA (typical)
Durability Features
Chemical Resistance: Withstands oils/solvents (IEC 60068-2-43)
Impact Resistance: 50J polycarbonate faceplate
Vibration Proof: 5-17Hz, 1.5mm amplitude (IEC 60068-2-6)
Functional Capabilities
Dedicated Keys: Emergency shutdown/acknowledgment buttons
Custom Labeling: Field-replaceable keycaps
ESD Protection: ±15kV air/±8kV contact discharge
Certifications
Typical Applications
Process Control: Oil & gas refineries
Power Plants: Boiler control systems
Chemical Plants: Batch process monitoring
