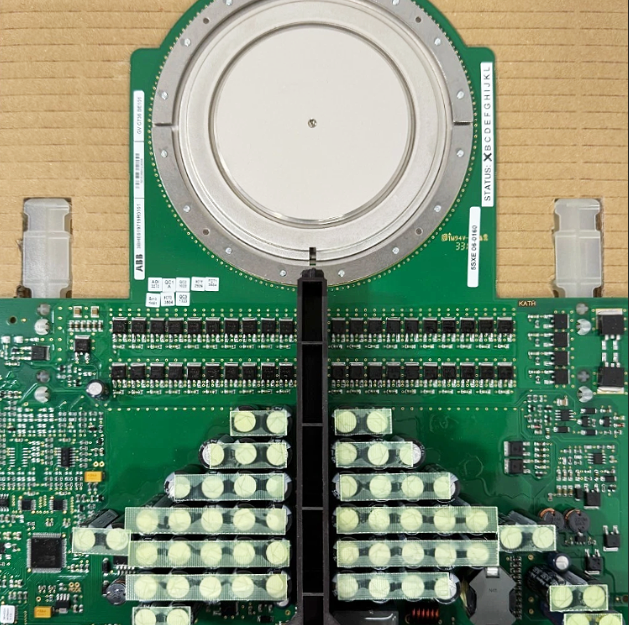

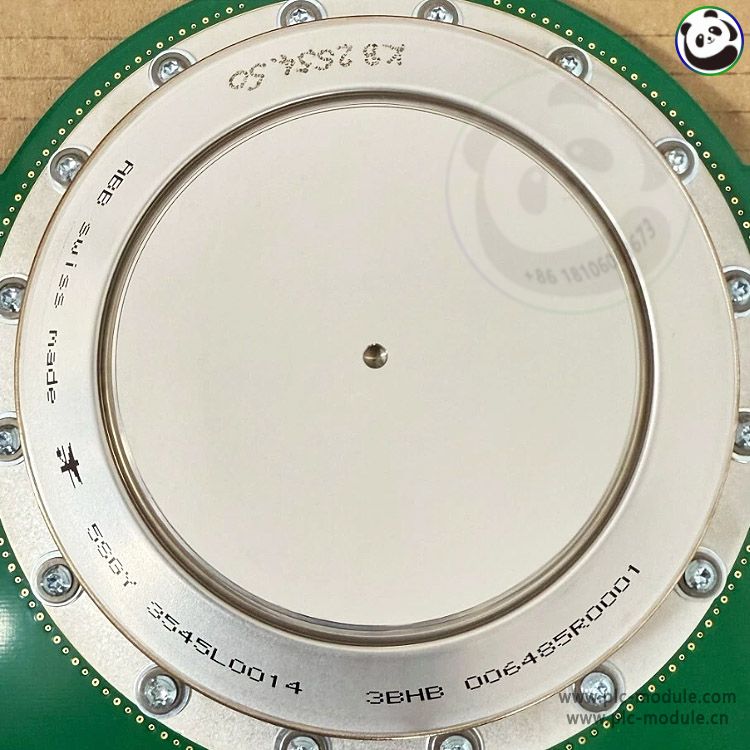

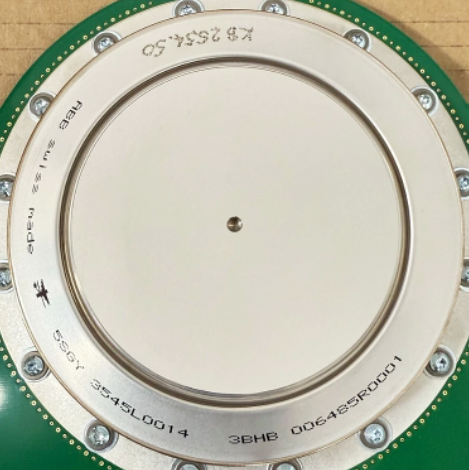

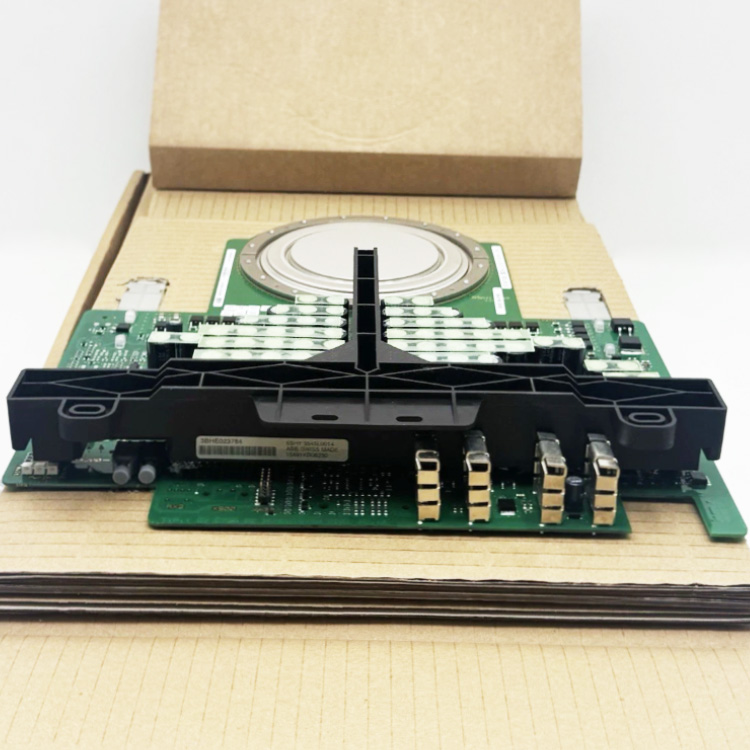

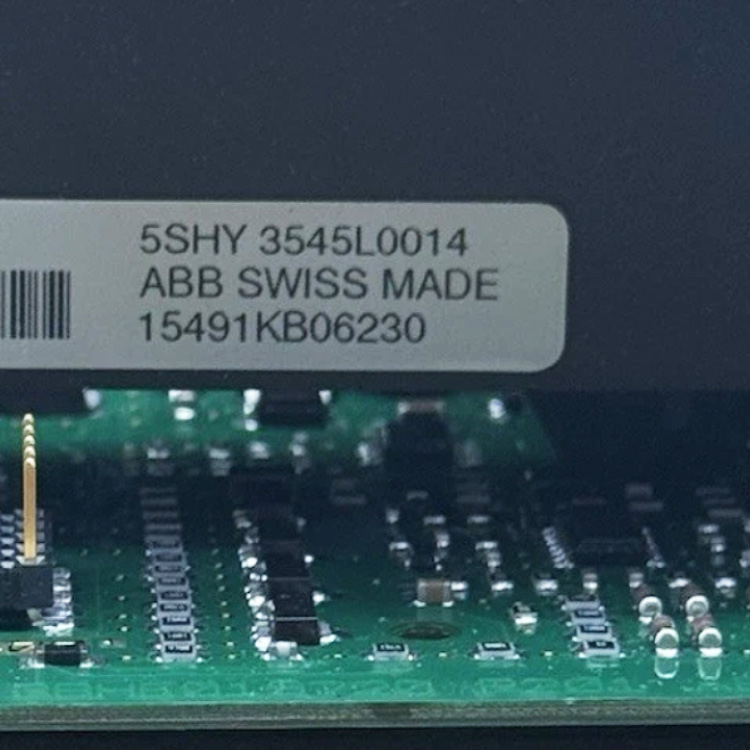

ABB 5SHY3545L0014 3BHE023784R0001 is a high-power, press-pack Integrated Gate-Commutated Thyristor (IGCT) module. It is a key component in ABB's industry-leading power electronic converters, designed for the most demanding medium-voltage applications.
Product Specifications
Device Type: Asymmetric Integrated Gate-Commutated Thyristor (IGCT)
Blocking Voltage (VDRM): 4500 V
Maximum Repetitive Reverse Voltage (VRRM): Typically 20-30V (characteristic of asymmetric IGCTs)
Maximum Average On-State Current (ITAV): Up to 3120 A (highly dependent on cooling conditions and application duty cycle)
Maximum Surge Current (ITSM): Extremely high, in the range of tens of kiloamperes (kA), providing excellent short-circuit withstand capability.
Housing / Platform: 91 mm press-pack housing.
Integrated Function: The "Integrated" in IGCT refers to the fact that the low-inductance, low-power Gate Drive Unit (GDU) is mechanically and electrically integrated with the thyristor die into a single, compact module. This is a fundamental differentiator from standard IGCTs.
USAGE SCENARIO：
Phase S-073N 3BHB009884R0021
