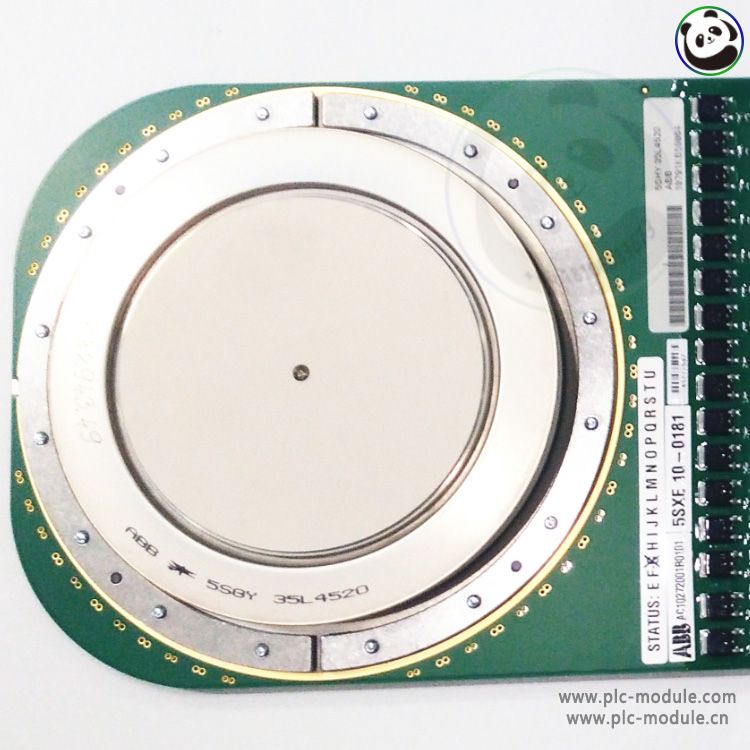

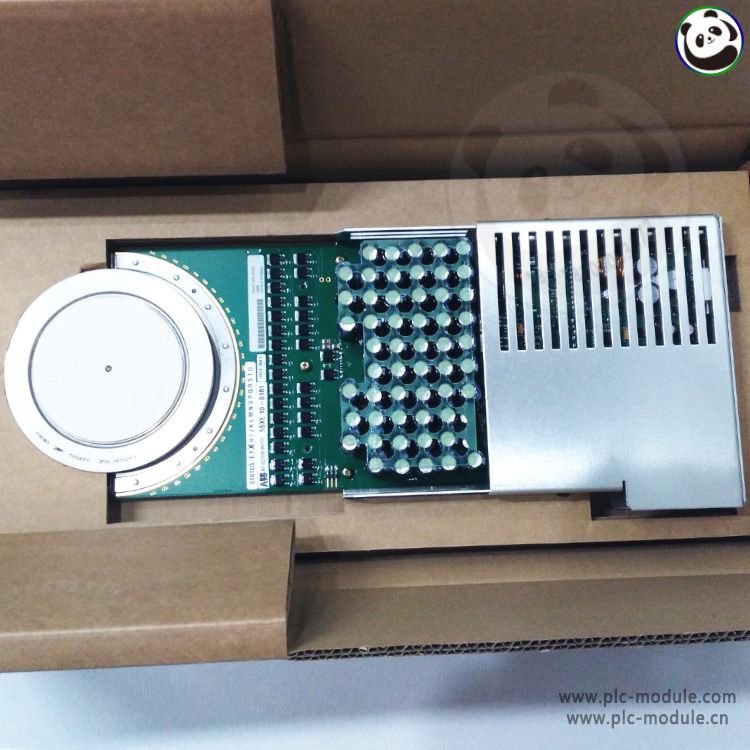

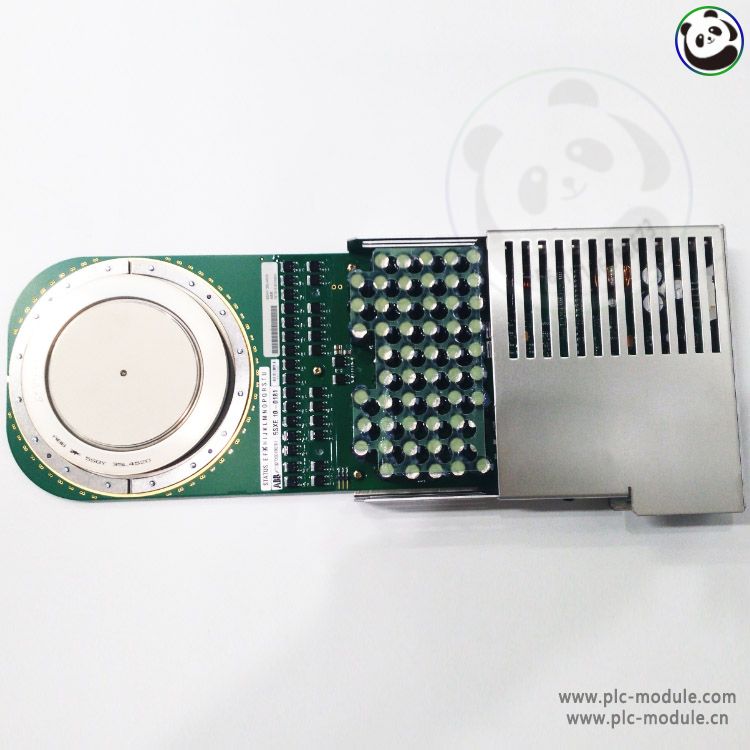

The ABB 5SHY 35L4520 (5SXE08-0167 AC10272001R0101) is an Integrated Gate-Commutated Thyristor (IGCT) designed for high-power industrial applications. This robust semiconductor device delivers reliable switching performance in medium-voltage drives, FACTS, and industrial converters. With low conduction losses, high surge current capability, and integrated gate drive, it ensures efficiency in demanding environments like power transmission, mining, and steel production.
Product Specifications
Key Features:
High Power Handling: Rated for 4.5kV/4kA, optimized for medium-voltage applications.
Low Power Losses: Minimal conduction & switching losses for improved energy efficiency.
Integrated Gate Unit: Simplified drive circuitry with built-in gate driver (GCT technology).
Rugged Construction: Hermetically sealed press-pack design for high mechanical stability.
Fast Switching: High di/dt & dv/dt tolerance for dynamic performance.
High Surge Current: Withstands short-circuit conditions without degradation.
Certifications & Compliance:
Applications:
Medium-Voltage Drives (MVD)
Flexible AC Transmission (FACTS, STATCOM, SVC)
Industrial Converters (Steel, Mining, Cement)
Renewable Energy (Wind, Solar Inverters)
Technical Specifications:
Voltage Rating: 4.5kV
Current Rating: 4kA (avg), 50kA (surge)
Switching Frequency: Optimized for 500Hz-1kHz
Thermal Resistance: Low junction-to-case (Rthjc) for efficient cooling.
Mounting: Press-pack (no soldering required) for reliable contact.
Advantages:
ABB’s Proven IGCT Technology: Industry-leading reliability in high-power electronics.
Reduced System Complexity: Integrated gate drive lowers external component count.
Long Operational Life: Robust construction ensures durability in harsh conditions.
