Alstom MAE99-04 Isolation Interface Unit

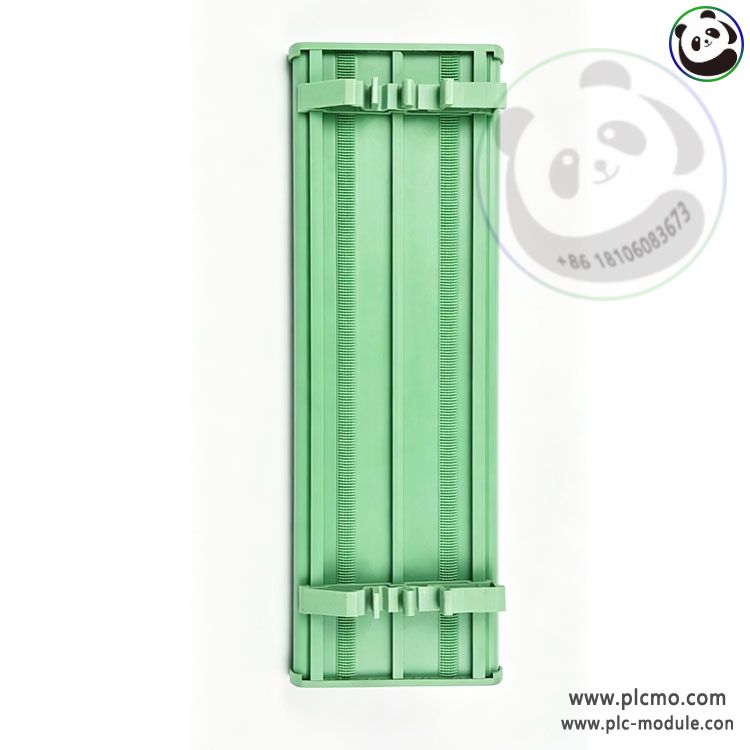

Installation Specifications: Standard DIN rail clip-on design with an integrated green flame-retardant plastic base, compatible with standard mounting slots in industrial control cabinets, allowing for easy installation and removal.

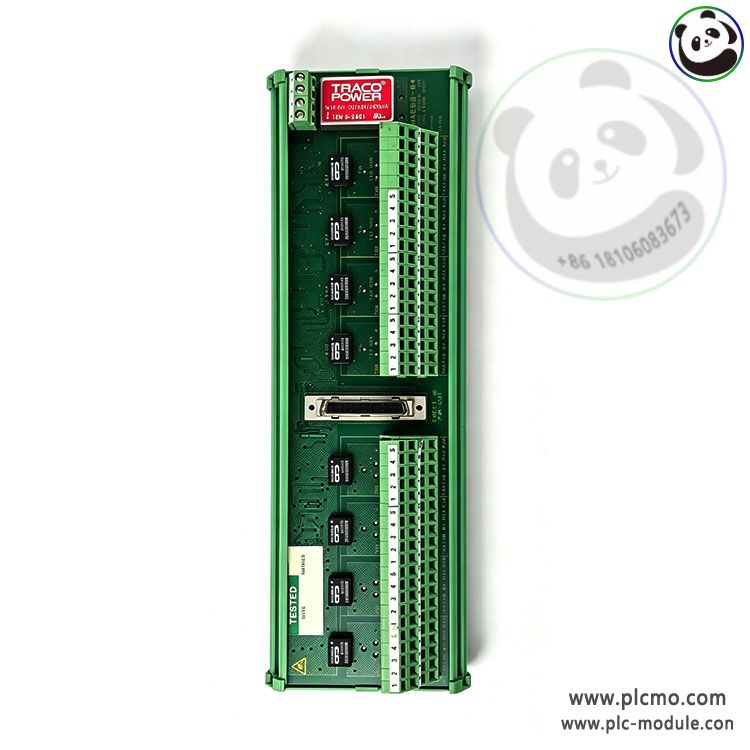

Electrical Isolation: Integrates 8 independent optically isolated channels, completely separating high- and low-voltage circuits, eliminating ground loop interference, withstanding transient surges, and ensuring distortion-free signal transmission.
Power Supply Specifications: Equipped with a TRACO power supply module, with an input of 18–36 VDC and an output of 5 V/500 mA, supporting a wide voltage range suitable for vehicle DC power supply environments.
Signal Interfaces: Features a central SCSI high-density bus interface and multiple sets of 5-pin high-density terminal blocks on both sides, with separate TX/RX signal channels and clearly labeled wiring.
Environmental Performance: Utilizes industrial-grade PCBs and isolation chips to withstand vehicle vibrations and operate over a wide temperature range. The flame-retardant substrate complies with rail transit safety standards, making it suitable for communication isolation circuits in urban rail and train control systems, ensuring the safe conversion of industrial control signals.
Alstom MAE99-04 Interface Board Isolation Unit
Alstom MAE99-04 Interface Board Isolation Unit
Alstom MAE99-04 Interface Board Isolation Unit
