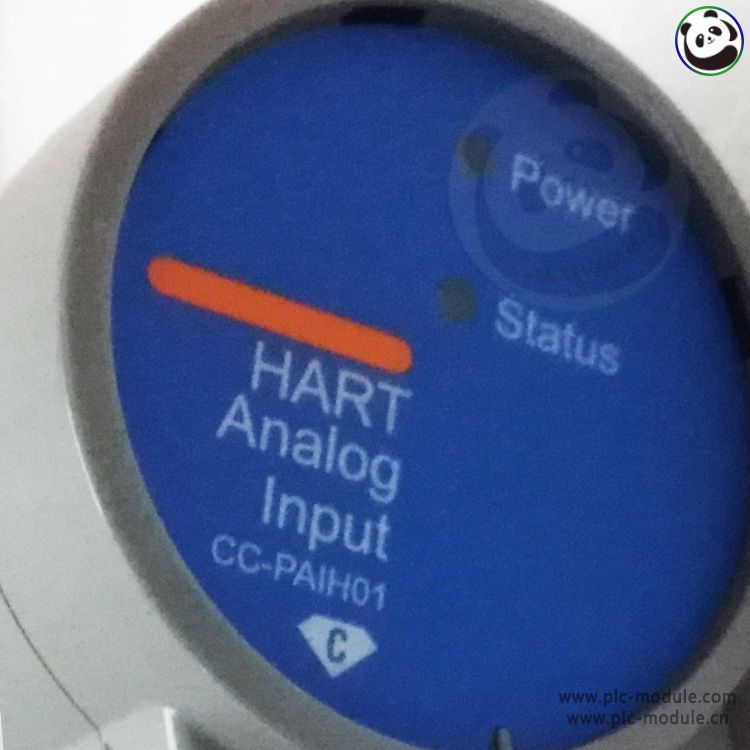

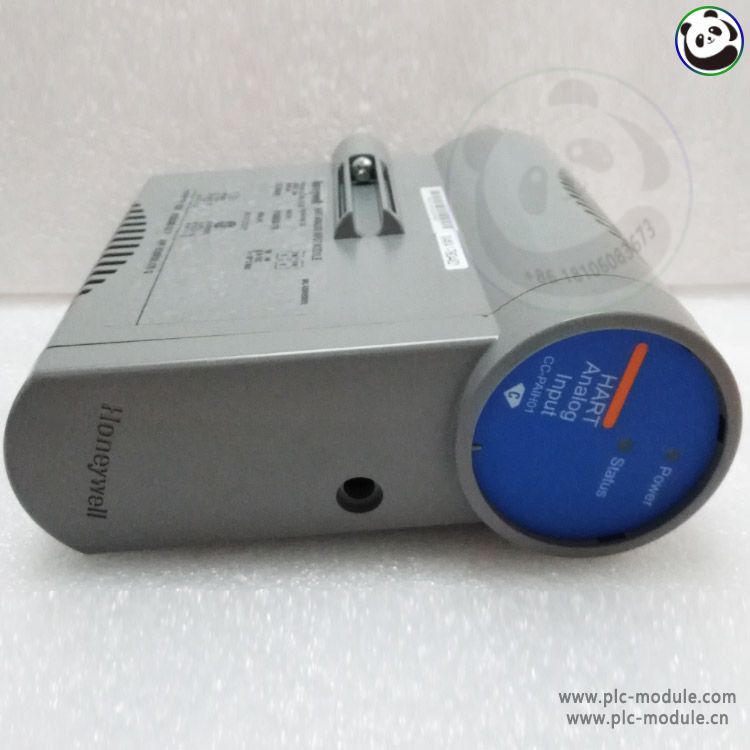

The Honeywell CC-PAIH01 51405038-175 is a HART-ENABLED ANALOG INPUT MODULE designed for use with Honeywell's Experion® PKS and other control systems. This module provides high-precision analog signal acquisition while supporting HART digital communication for smart field devices, making it ideal for process automation in industries such as oil & gas, chemical, and power generation.
Technical Specifications
| Parameter | Specification |
|---|
| Model Number | CC-PAIH01 (51405038-175) |
| Input Type | 4-20mA, 0-20mA, ±10V (configurable) |
| HART Support | HART 7 Protocol (Point-to-Point & Multidrop) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | 1500 VAC (channel-to-channel) |
| Update Rate | Configurable (typical 100ms per channel) |
| Power Supply | 24 VDC (from system backplane) |
| Operating Temp. | -40°C to +70°C |
| Compatibility | Honeywell Experion PKS, C300 Controller |
Key Features
1. HART Communication Support
Simultaneous analog signal (4-20mA) and HART digital communication
Supports HART 7 protocol for device configuration and diagnostics
Multidrop mode capability (up to 15 devices per channel)
2. High-Accuracy Analog Input
16-bit resolution for precise measurement
Supports 4-20mA, 0-20mA, and voltage inputs (configurable)
±0.1% accuracy for reliable process control
3. Channel Isolation & Noise Immunity
Channel-to-channel isolation (1500 VAC) prevents signal interference
Advanced filtering for noise reduction in harsh environments
4. Hot-Swappable & Redundant Configuration
Supports online replacement (hot-swap) for minimal downtime
Compatible with redundant systems for high availability
5. LED Diagnostics & Status Indication
Per-channel LED indicators for signal status and faults
Module health monitoring for predictive maintenance.
Honeywell Experion PKS, C300 series
Honeywell Process Solutions is a pioneer in automation control, instrumentation and services for the oil and gas; refining; energy; pulp and paper; industrial power generation; chemicals and petrochemicals; biofuels; life sciences; and metals, minerals and mining industries. It is also a leader in providing software solutions and instrumentation that help manufacturers find value and competitive advantage in through Honeywell Connected Plant, Honeywell’s Industrial Internet of Things (IIoT) solution. Process Solutions is part of Honeywell’s Performance Materials and Technologies strategic business group, which also includes Honeywell UOP a leading international supplier and licensor of process technology, catalysts, adsorbents, equipment, and consulting services to the petroleum refining, petrochemical, and gas processing industries.
Honeywell is a Fortune 100 technology company that delivers industry-specific solutions that include aerospace products and services; control technologies for buildings and industry; and performance materials globally.
Honeywell Introduces C300PM Controller To Help Industrial Operations Achieve A Modern, Unified Process Control Platform
Honeywell today introduced the C300PM, a flexible and cost-effective solution designed to provide a unified process control platform. The new controller enables seamless technology evolution for customers seeking to utilize the features of the state-of-the-art C300 process controller while retaining a familiar hardware package.
In today’s competitive environment, an effective strategy of control technology upgrades can help manufacturers reduce asset ownership costs, increase production rates, manage risks, extend the life and performance of systems and improve responses to changing customer demands.
With the C300PM, companies undertaking plant renovations or unit expansions can upgrade their controller installed base with a solution that provides a common engineering environment and eliminates the need to completely replace existing hardware.
The C300PM employs Honeywell’s deterministic Control Execution Environment (CEE) to execute control strategies on a constant and predictable schedule. The CEE is loaded into the C300PM controller, providing the execution platform for a set of automatic control, logic, data acquisition and calculation function blocks.
The Experion PKS C300 controller forms the heart of the Experion control system, and is ideal for implementation across all industries, with best-in-class process control capabilities and security. It supports a wide variety of process control applications, including continuous and batch processes, and integration with smart field devices. The C300 controller also supports advanced process control, as well as custom algorithm blocks that let users create custom code to run in the C300 controller.
The C300 controller provides the means to overcome the increasing complexity of control systems, reduce Cyber risks and significantly improves the operational and lifecycle support aspects for control systems, as it offers :
- Robust and scalable Control Platform for a wide range of control applications addressing the most demanding process control requirements.
- A new paradigm for process control with IO & Control HIVE enabling maximum flexibility, scalability, standardization, optimization, and resiliency
- Best-in-class security ensuring safe and secure operations
- Facilitates modular and parallel project execution
- Maximized process uptime and minimized maintenance effort with robust diagnostics and innovative redundancy schemes
- Improved engineering productivity and maintenance using the rich function libraries provided in the intuitive user environment Seamless integration of smart field devices and controllers via standard protocols.
