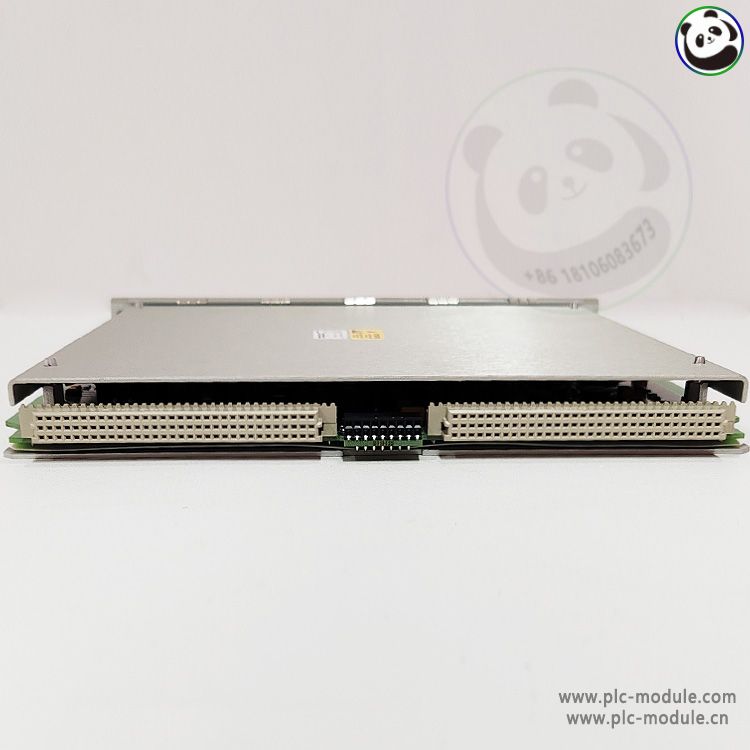

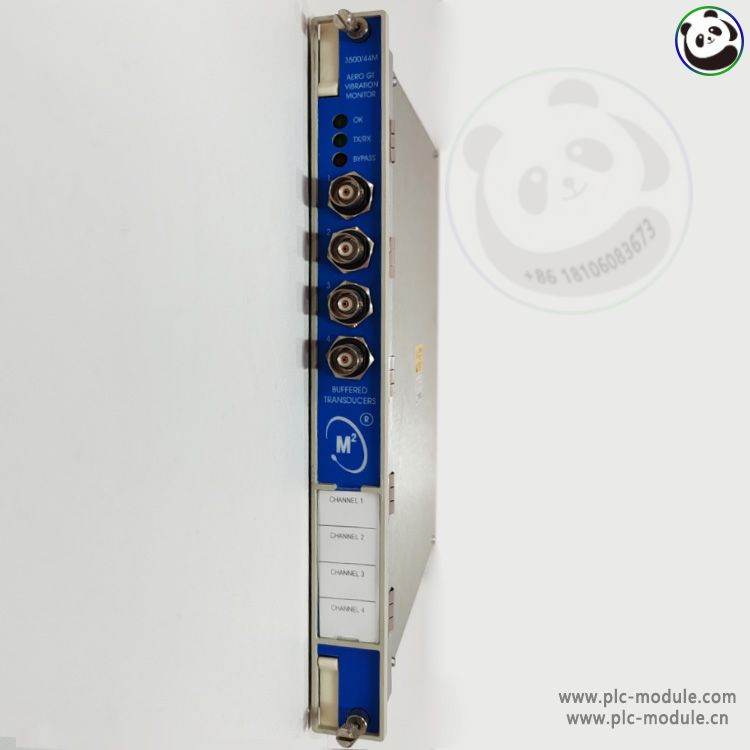

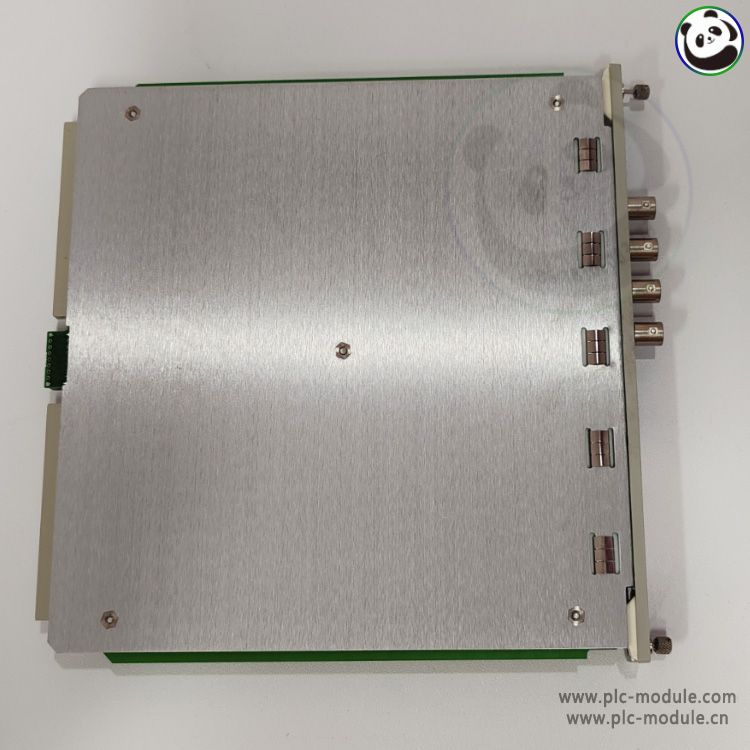

Bently Nevada 3500/44M Aero GT Vibration Monitor
The Protection Processing Module (PPM) serves as the computational engine for the Orbit 60 monitoring system. It extracts all machinery measurements for the protection system and performs alarm determinations. The PPM analyzes signals from transducers, generates measurements\statuses and publishes them to other modules for data collection and external communication. Each PPM occupies a single slot within the system.
Each PPM provides capacity for a large number of sensors and can support typical monitored machine trains. The PPM capacity is a function of the type of processing required on each input. If the system requires more processing than a single PPM can provide additional PPMs can be added to the system for complex monitoring deployments. . For protection systems, redundant PPMs are recommended.
Technical Specifications
Core Functionality:
Measurement Capabilities:
Protection Features:
Technical Specifications:
Environmental Robustness:
Diagnostic Features:
Brand：BENTLY NEVADA
Model：3500/44M
Product Name：Aeroderivitive GT Vibration Monitor
Website:www.plc-module.com
Related Information：
Bently Nevada was a privately held US corporation between 1961 and 2002, during which time it pioneered the eddy-current proximity probe, a sensor that revolutionized the measurement of vibration in high-speed turbomachinery by allowing the direct observation of the rotating shaft. The company also performed significant research in the field of rotordynamics, furthering knowledge of machinery malfunctions such as shaft cracks and fluid-induced instabilities. Its research also helped refine the equations used to describe vibratory behavior in rotordynamic systems.
The 3500TMR configuration performs the monitor voting function by selecting the install function of the MONITOR option. In this way, the TMR TDI continuously compares the output of the three redundant monitors. If the TMR TDI detects that the output of one monitor is not equal to the output of the other two monitors (within a percentage of the configuration), it issues an error indication to the monitor.
Orbit 60 Series Chassis
You can flexibly deploy each chassis option with a public facing side (for rack or panel mounts) and a utility side (for wiring connections and bulkhead mounts). Insert modules and make all wiring connections from the utility side. Provisions for the public side of the chassis include status LEDs, configuration port, Config/Run key, and reset button. Three chassis types are available.
Chassis Types
Mounting Options
l Panel Mount – Mounts to rectangular cutouts in panels and secures to the panel using clamps supplied with the chassis in 3U Mini*, 3U 19" standard, and 6U 19" standard* configurations. The 6U 19" will fit in the space of a 3500 rack.*
l Rackmount – Mounts the 3U or 6U chassis on 19-inch EIA rails. Two 3U units or a single 6U* form factor have been designed to fit within the space of a single 19” rackmount 3500 unit, as a retrofit.
l Bulkhead - Typically mounts into a protective enclosure fastened to a sub panel in 3U Mini*, 3U 19" standard, and 6U 19" standard* configurations. NEMA 4 and 4X weatherproof housings are available when required for environmental protection or when purge air is used.
