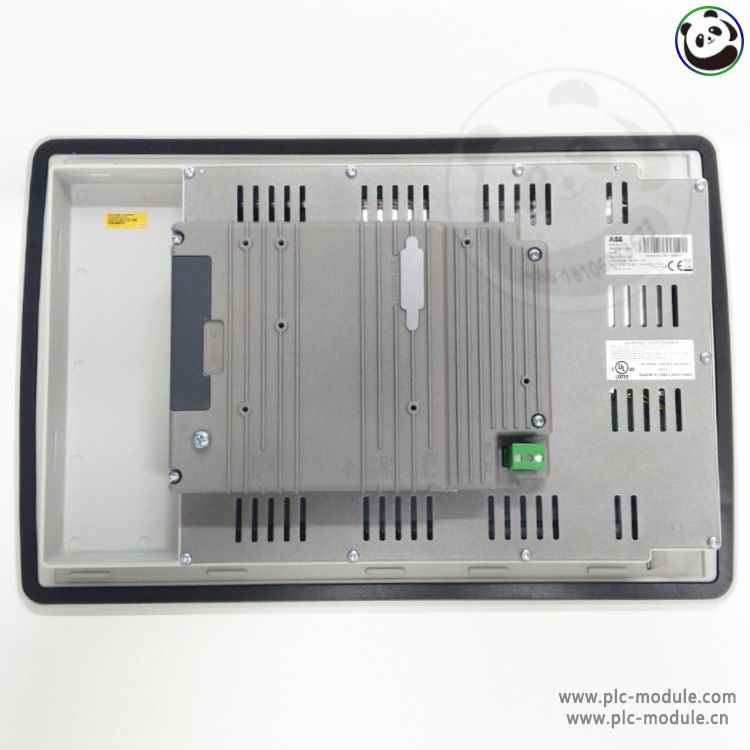

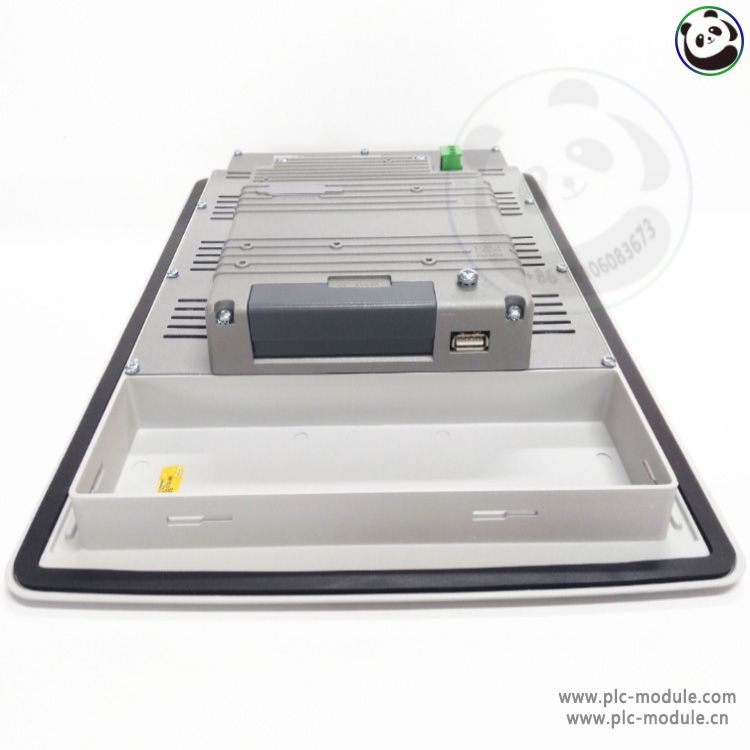

ABB PP846A 3BSE042238R2 Panel 800 10.4" INDUSTRIAL-IT HMI OPERATOR PANEL.The ABB PP846A 3BSE042238R2 is an industrial-grade HMI (Human-Machine Interface) operator panel designed for use in various industrial applications. It features a 10.4-inch display with a resolution of 800 x 600 pixels, offering 64K colors. The display technology used is TFT-LCD with CCFL backlighting, which has a lifetime of over 50,000 hours at an ambient temperature of +25°C. This model supports serial communication via RS422/RS485 and RS232C interfaces, both of which are standard 25-pin D-sub connectors.
The keypad of the PP846A 3BSE042238R2 is a membrane switch keyboard with metal domes, utilizing an overlay film of Autotex F157 with printing on the reverse side. It is rated for 1 million operations. The device operates within a relative humidity range of 5% to 85% non-condensed and is intended for indoor use only under NEMA 4 conditions. The active area of the display measures 211.2 x 158.4 mm.
Product Specifications
Display & Interface
10.4" High-Resolution TFT LCD (640 x 480 pixels) with LED backlight for clear visibility.
Projected capacitive touchscreen (multi-touch support) or resistive touch (optional).
IP65-rated front panel for dust/water resistance.
Performance & Connectivity
Powerful 800 MHz ARM Cortex-A8 processor for smooth operation.
Integrated Ethernet (2x ports), USB, RS-232/485, and optional PROFIBUS/Modbus for flexible device connectivity.
Seamless integration with ABB AC 800M controllers for real-time process control.
Durability & Compliance
Wide operating temperature range (-20°C to +60°C) and 5-95% humidity tolerance.
Vibration & shock-resistant (IEC 60068-2-6/2-27 certified).
CE, UL, ATEX (optional), and IEC 61131-2 compliant.
Software & Security
Compatible with ABB's Control Builder and Panel 800 Designer for easy configuration.
User authentication & role-based access control for secure operation.
Supports alarm logging, trend visualization, and recipe management.
Applications
Process automation (chemical, oil & gas, power, water treatment)
Machine control & SCADA visualization
Batch processing & industrial monitoring
ABB PP846A 3BSE042238R2 Panel 800 10.4" INDUSTRIAL-IT HMI OPERATOR PANEL.
