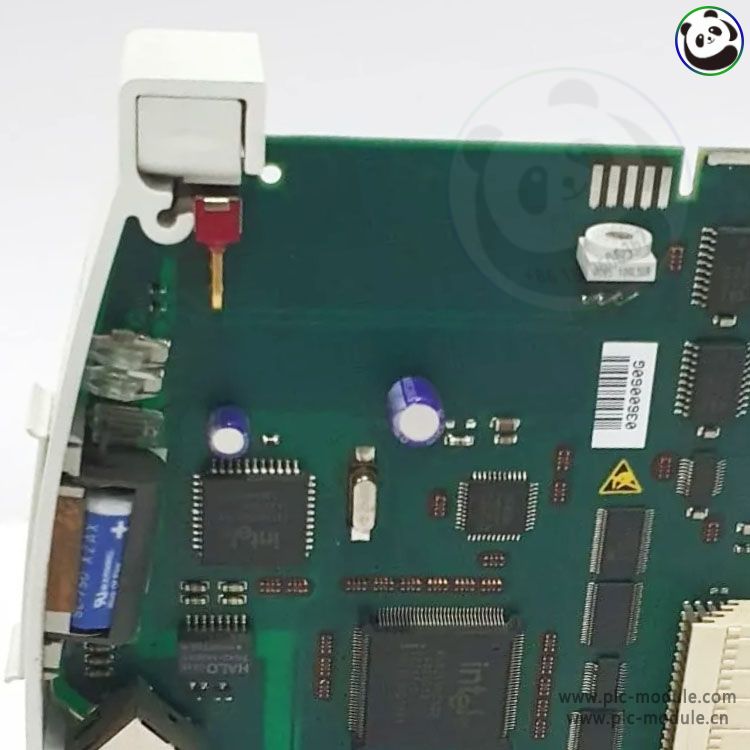

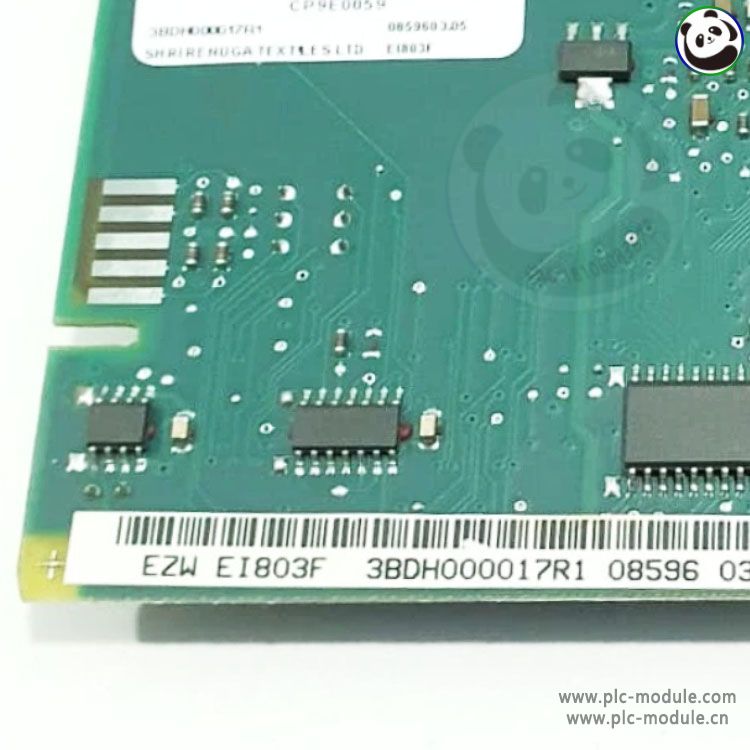

The ABB EI803F 3BDH000017R1 is an industrial 10BASE-T Ethernet module designed for ABB AC800F PLC systems. It provides reliable 10 Mbps Ethernet communication for real-time control and monitoring in harsh industrial environments. Featuring robust galvanic isolation, RJ45 interface, and compliance with IEEE 802.3 standards, this module ensures seamless integration into automation networks while maintaining ABB's high reliability and performance benchmarks.
Product Specifications
Key Identification & Compatibility
Network Specifications
Ethernet Standard: IEEE 802.3 10BASE-T
Data Rate: 10 Mbps (half-duplex)
Connector Type: Shielded RJ45 (IP20 protection)
Cable Requirements: CAT5 UTP/STP (max 100m segment length)
Electrical Characteristics
Isolation: 1500V AC galvanic isolation (network-to-system)
Power Supply: 24V DC (via controller backplane)
Power Consumption: 1.2W typical
Environmental & Certifications
Operating Temperature: -25°C to +60°C
Relative Humidity: 5% to 95% (non-condensing)
Vibration Resistance: 5g @ 10–150Hz (IEC 60068-2-6)
Certifications: CE, UL, IEC 61131-2
Functional Features
Protocol Support:
Diagnostics:
LED Indicators (Power, Link/Activity, Fault)
Status monitoring via Control Builder software
Configuration:
Mechanical Details
Important Notes
Not compatible with 100BASE-TX networks (10 Mbps only).
For redundant configurations, use with ABB EI813F module.
Firmware Updates: Must be performed via ABB tools.
