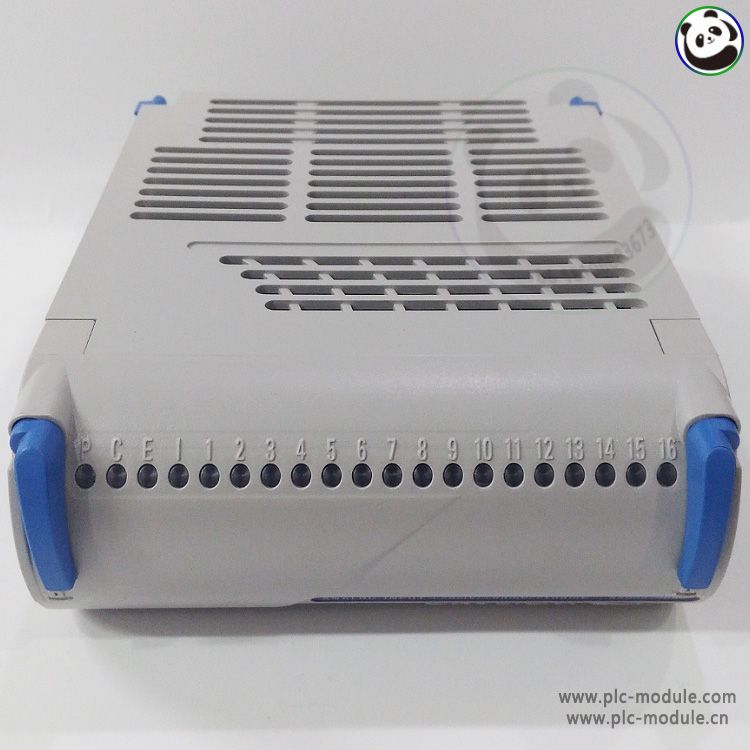

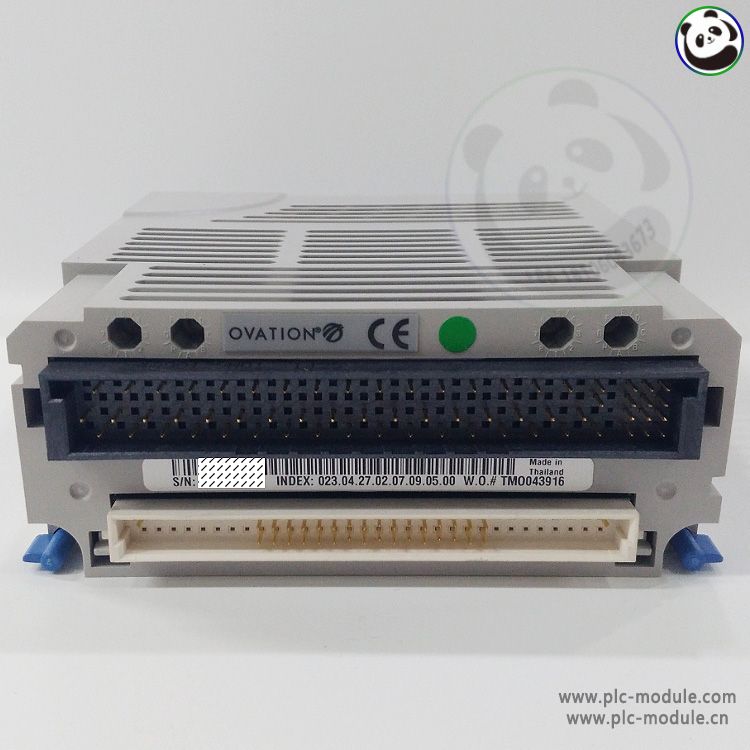

The Emerson Ovation 5X00070G04 is a high-precision Analog Input Module designed for low-voltage signal acquisition (±20mV/±50mV/±100mV) in Ovation DCS systems. Featuring 8 differential channels, 16-bit resolution, and ±0.1% accuracy, it ensures reliable measurement of sensitive signals like strain gauges or thermocouples. The module supports hot-swapping, provides channel-to-channel isolation, and includes self-diagnostics for fault detection. With robust EMC compliance and industrial-grade durability, it is ideal for power plants, oil & gas, and process control applications. Configuration is performed via Ovation Developer Studio, ensuring seamless integration.
Product Specifications
1. General Module Details
Manufacturer: Emerson (formerly Westinghouse)
Model: 5X00070G04
System Compatibility: Ovation DCS
Module Type: Low-Level Voltage Analog Input (AI)
Hot-Swappable: Yes (supports online replacement)
Isolation: Channel-to-channel and system isolation
2. Input Signal Specifications
Input Ranges (Selectable):
±20mV (millivolts)
±50mV
±100mV
Input Channels: 8 differential (16 single-ended, if supported)
Input Impedance: ≥10 MΩ (high impedance to minimize signal loading)
Resolution: 16-bit ADC (high-precision conversion)
Accuracy: ±0.1% of full scale (typical)
Common-Mode Rejection (CMRR): >100 dB (reduces noise interference)
3. Performance & Environmental Ratings
Sampling Rate: Configurable (typically 10–50 samples per second per channel)
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Humidity Range: 5–95% RH (non-condensing)
EMC Compliance: IEC 61326, IEC 61000-6-2/4 (industrial noise immunity)
4. Wiring & Connections
Termination: Screw terminal block (refer to manual for pinout)
Signal Wiring: Shielded twisted pair recommended (for noise immunity)
Excitation Voltage (if applicable): Not required (passive mV input)
5. Diagnostics & Indicators
6. Power & Communication
Power Supply: 24V DC (typically from Ovation rack)
Power Consumption: ≤3W (module dependent)
Communication: Ovation backplane (high-speed DCS integration)

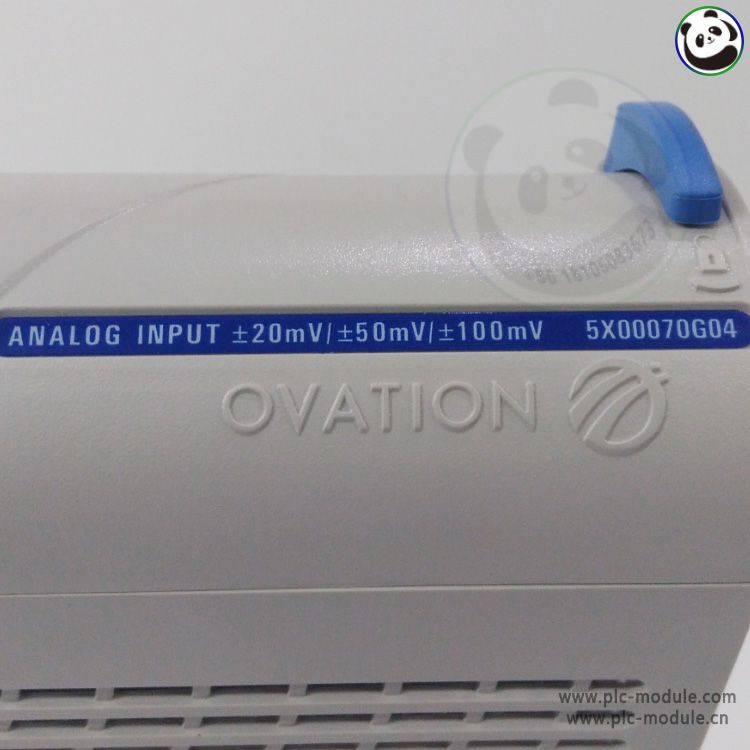

ANALOG INPUT ±20mV/±50mV/±100mV 5X00070G04 OVATION
