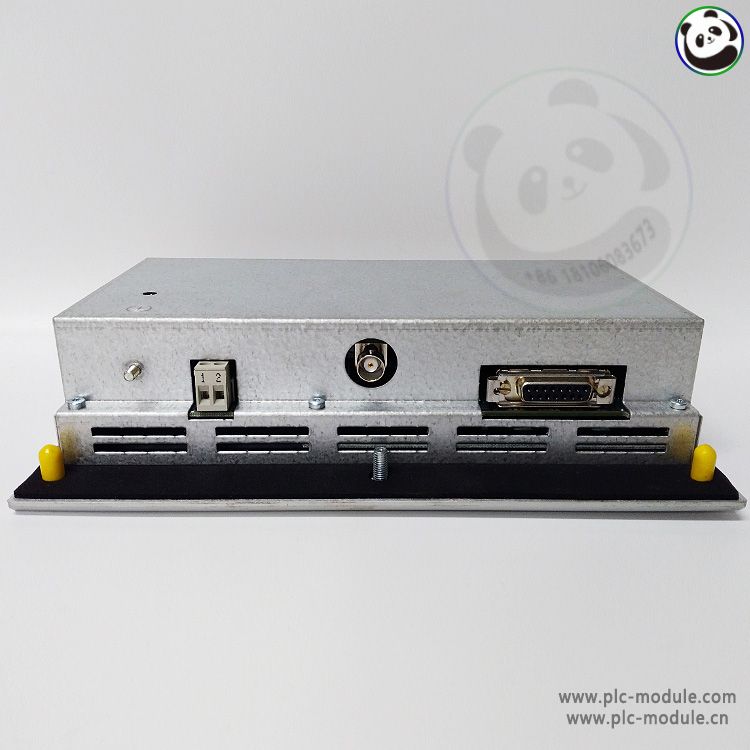

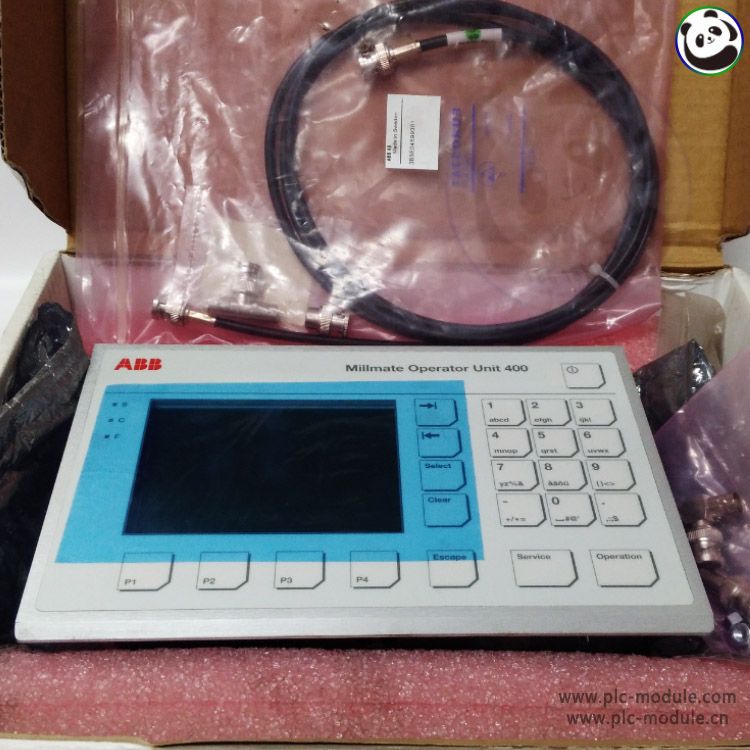

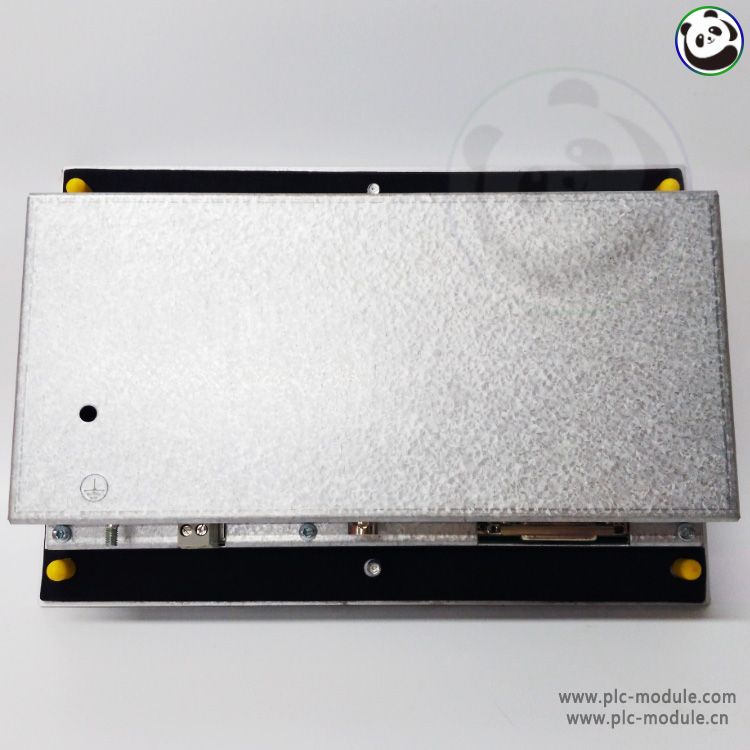

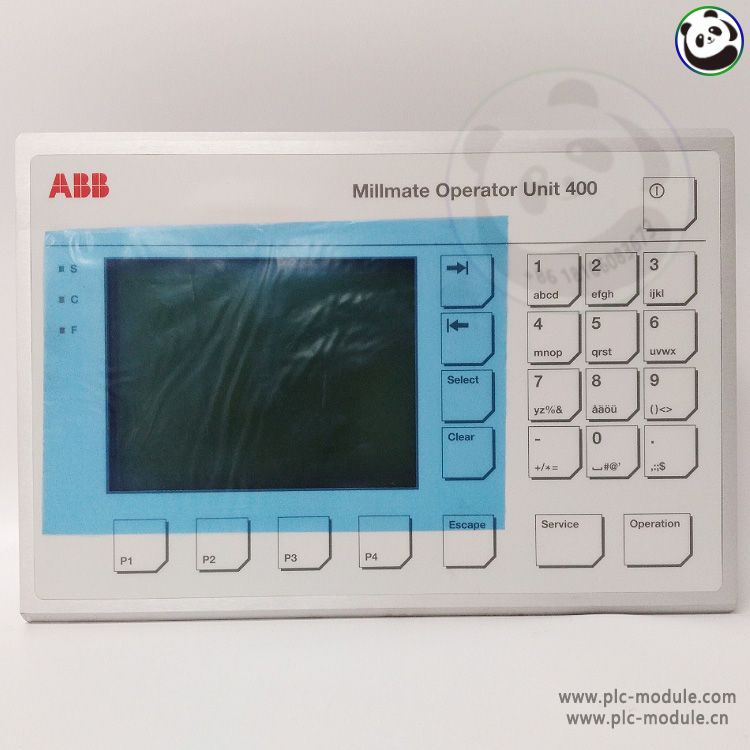

ABB PXAH401 3BSE017235R1 Millmate operator Unit 400 HMI

ABB PXAH401 3BSE017235R1 Millmate operator Unit 400 HMI

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：panda@xiongbaindustrial.com

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

The ABB Millmate Operator Unit 400 (PXAH401, 3BSE017235R1) is a robust and user-friendly HMI (Human-Machine Interface) panel designed for industrial automation in milling and other demanding applications. Featuring a high-resolution display, intuitive touch controls, and rugged construction, it ensures reliable operation in harsh environments. With seamless integration into ABB’s control systems, it supports real-time monitoring, process visualization, and efficient operator interaction. Its IP65-rated enclosure provides dust and water resistance, making it ideal for pulp & paper, metals, and mineral processing industries. The unit enhances productivity with ergonomic design and advanced communication capabilities, including Ethernet and fieldbus connectivity.

Product Specifications

The control unit covers all edge sensor installation possibilities. This means the user only has to follow the step-by-step instructions in order to set up the control unit and to have correct strip edge and center position and width calculated.

Calculates true strip position and width in relation to the mill
Filter times from 10 ms
Easily configurable analog/digital inputs/outputs
Digital edge position level detectors
Digital min. and max. width level detectors
Unit selection (mm, inch)
Self-diagnostic test system including continuous edge sensor test

Simulation mode for easy check of system integration

Dimensions (H x W x D)		380 x 235 x 90 mm
Weight		5 kg
Protection class		IP 20

Mains voltage		85 - 264 V
Power consumption		140 VA

Operation temperature		0 to +70°C
Storage temperature		-40 to +70°C

Analog inputs		0 - 10 V, ±10 V differential inputs
Analog outputs
	Voltage	0 - ±10 V
	Current	0 - ±20 mA
		4 - 20 mA
		insulated as group
	Step response	20 ms (0 - 90%)

Digital inputs		0/+24 V, insulated 4 + 4
Digital outputs		0/+24 V, insulated 4 + 4
