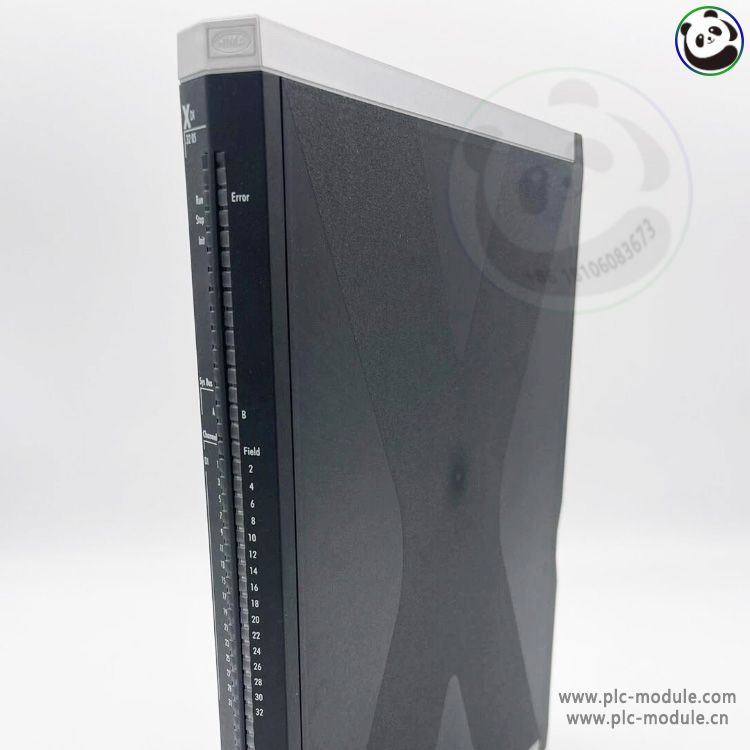

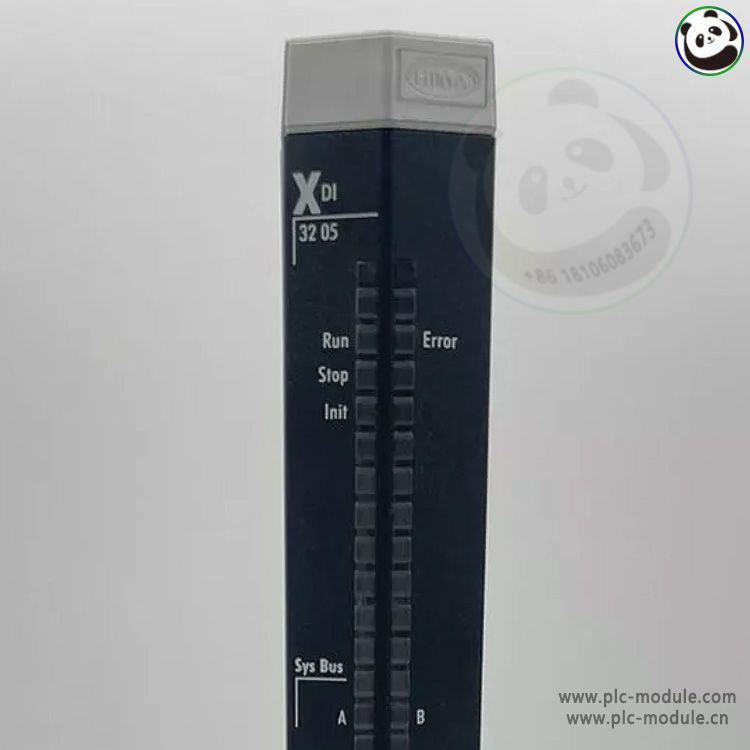

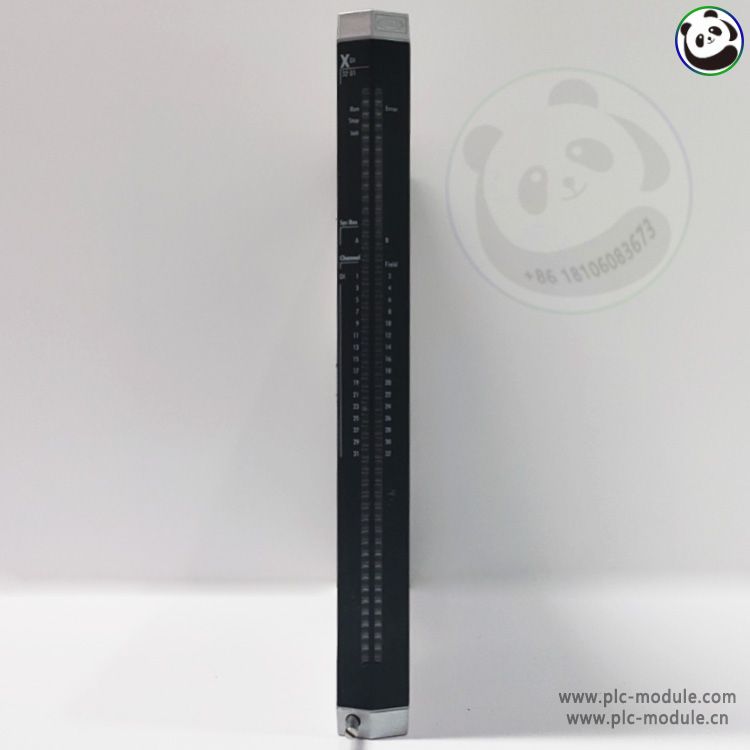

The HIMA X-DI3205 (985210231) is a SIL 3-certified digital input module for the HIMax safety system, designed for critical shutdown applications. It features 32 galvanically isolated channels (24V DC) with fault detection (open-circuit/short-circuit) and meets IEC 61508 standards. Its hot-swappable design ensures continuous operation in hazardous industries like oil/gas and power generation.
Product Specifications
Key Identification & Compliance

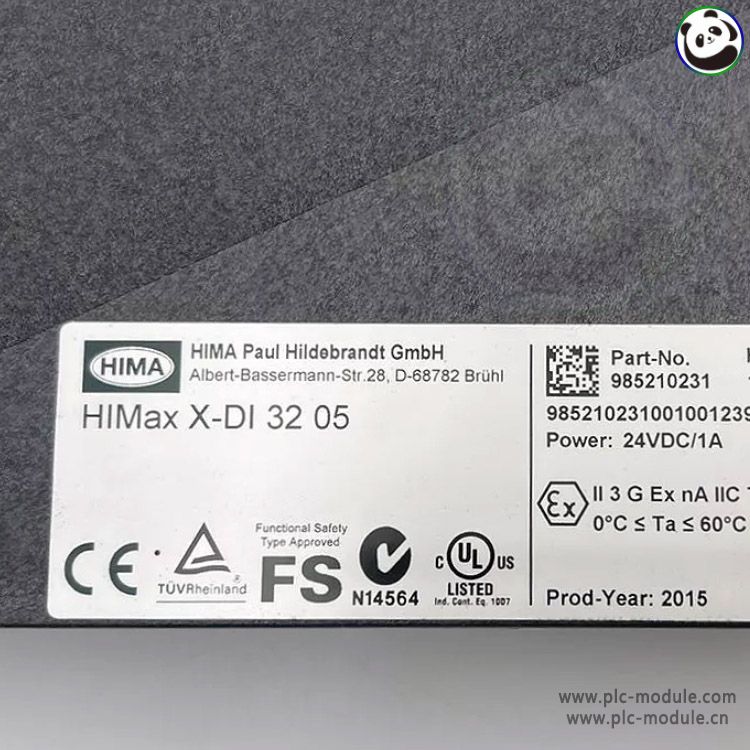

Model: X-DI3205 (Order No. 985210231)
System Compatibility: HIMA HIMax Safety PLCs
Safety Certification: SIL 3 (IEC 61508), TÜV-approved
Technical Parameters
Input Channels: 32 channels (individually configurable)
Input Type: 24V DC (sink/source)
Isolation:
Response Time: <1ms per channel
Functional Features
Environmental & Mechanical
Operating Temperature: -40°C to +70°C
Humidity: 5–95% (non-condensing)
Vibration/Shock: IEC 60068-2-6/27 (industrial grade)
Protection Class: IP20 (panel-mounted)
Certifications & Approvals
Functional Safety: SIL 3 (IEC 61508), TÜV Rheinland
EMC: EN 61326-1 (industrial immunity)
Hazardous Areas: ATEX/IECEx (optional)
Integration & Configuration
Wiring: Spring-clamp terminals (screwless, 0.2–2.5mm²)
Software: Configured via HIMA Safety Manager (HSM)
MTBF: >150,000 hours (predicted)
Critical Notes
