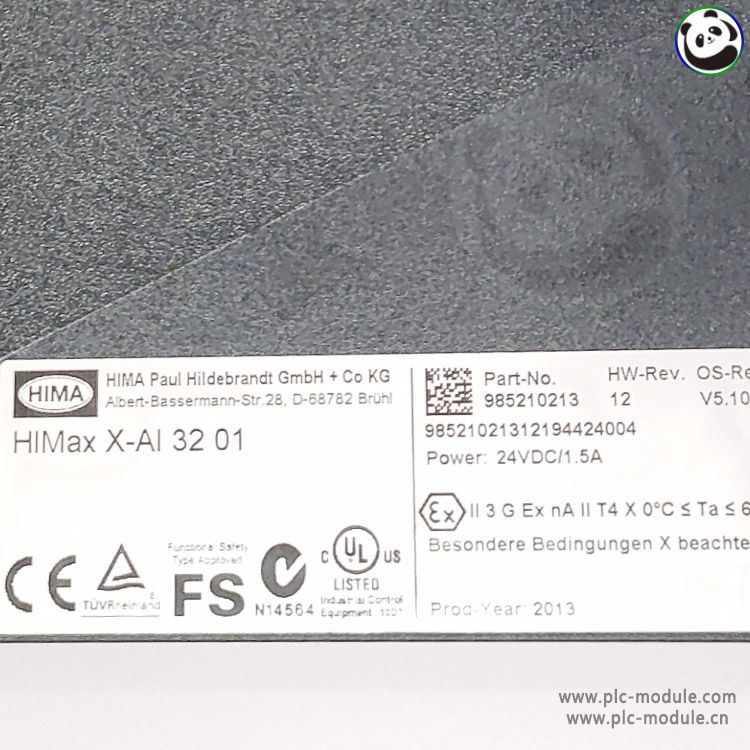

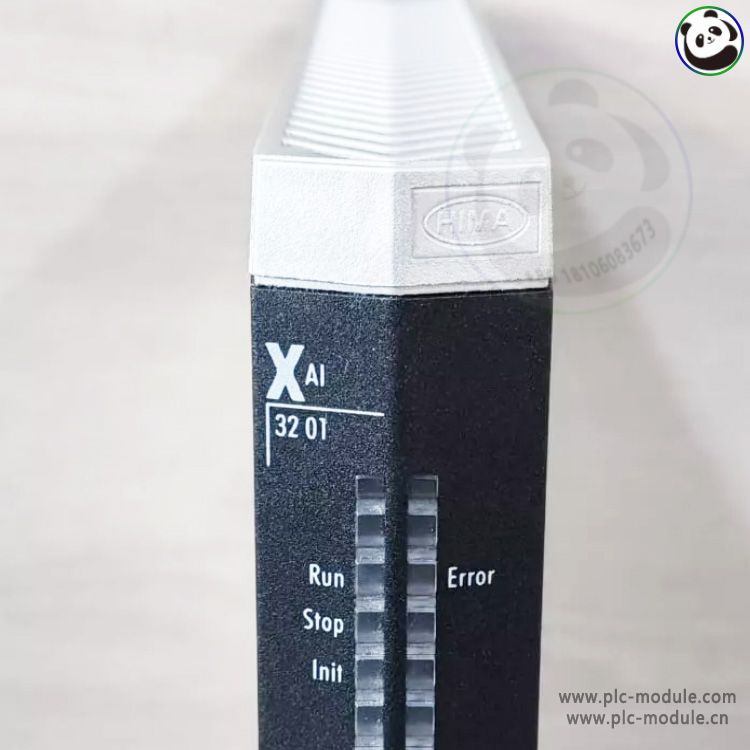

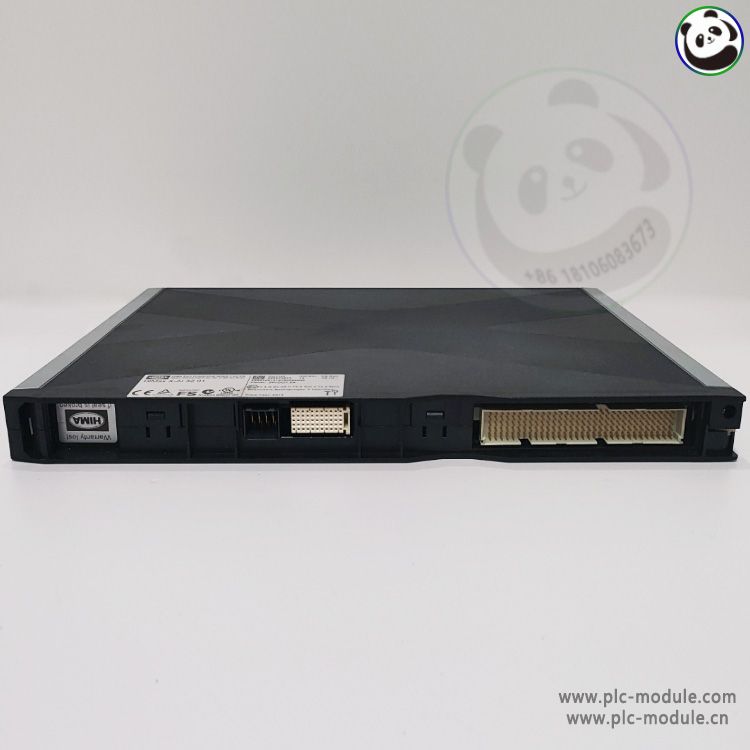

The HIMA X-AI3201 (985210213) is a high-reliability analog input module for the HIMax safety system, designed for critical process applications. It provides 16-channel analog signal acquisition (4-20mA/0-10V) with SIL 3 safety certification. Featuring galvanic isolation, fault diagnostics, and hot-swappable design, it ensures fail-safe operation in hazardous environments like oil/gas and chemical plants.
Product Specifications
Key Identification & Compliance
Model: X-AI3201 (Order No. 985210213)
System Compatibility: HIMA HIMax Safety PLCs
Safety Certification: SIL 3 (IEC 61508), TÜV-approved
Technical Parameters
Input Channels: 16 channels (configurable per channel)
Signal Types:
Resolution: 16-bit ADC
Accuracy: ±0.1% FS (full scale)
Isolation: Channel-to-channel & system galvanic isolation (1500V AC)
Functional Features
Environmental & Mechanical
Operating Temperature: -40°C to +70°C
Humidity: 0–95% (non-condensing)
Vibration/Shock: IEC 60068-2-6/27 (industrial grade)
Protection Class: IP20 (panel-mounted)
Certifications & Approvals
Functional Safety: SIL 3 (IEC 61508), TÜV Rheinland
EMC: EN 61326-1 (industrial immunity)
Hazardous Areas: ATEX/IECEx (optional)
Integration & Configuration
Wiring: Spring-clamp terminals (screwless)
Software: Configured via HIMA Safety Manager (HSM)
MTBF: >100,000 hours (predicted)
Critical Notes
