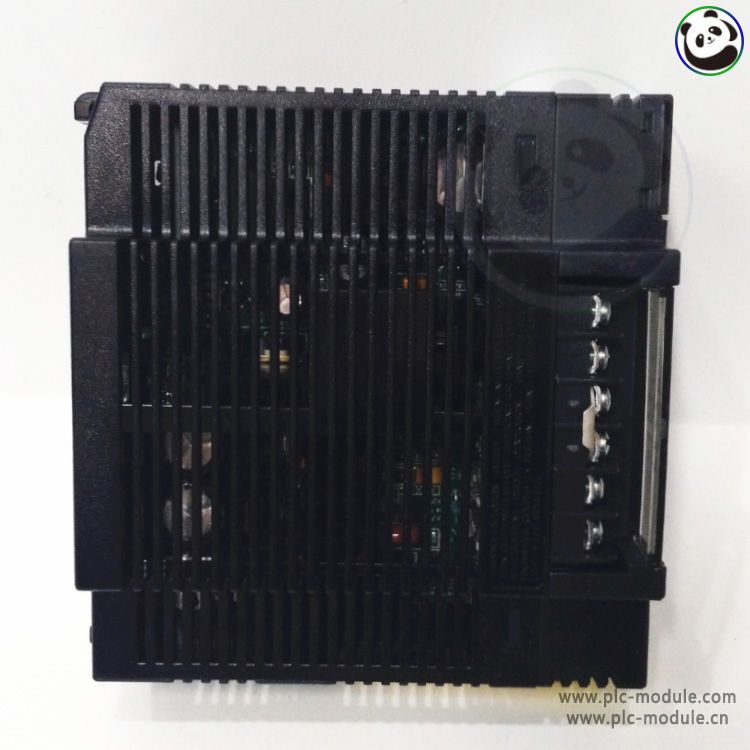

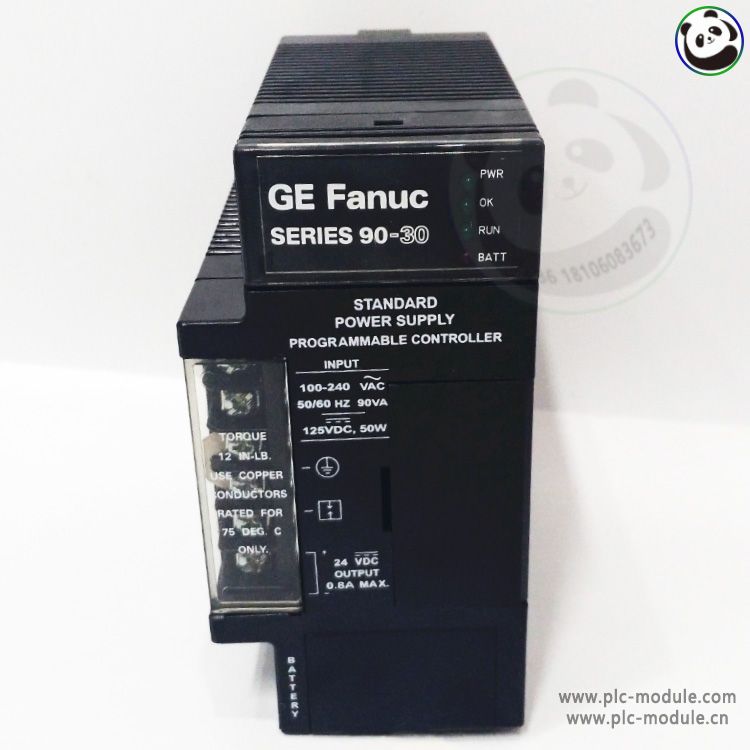

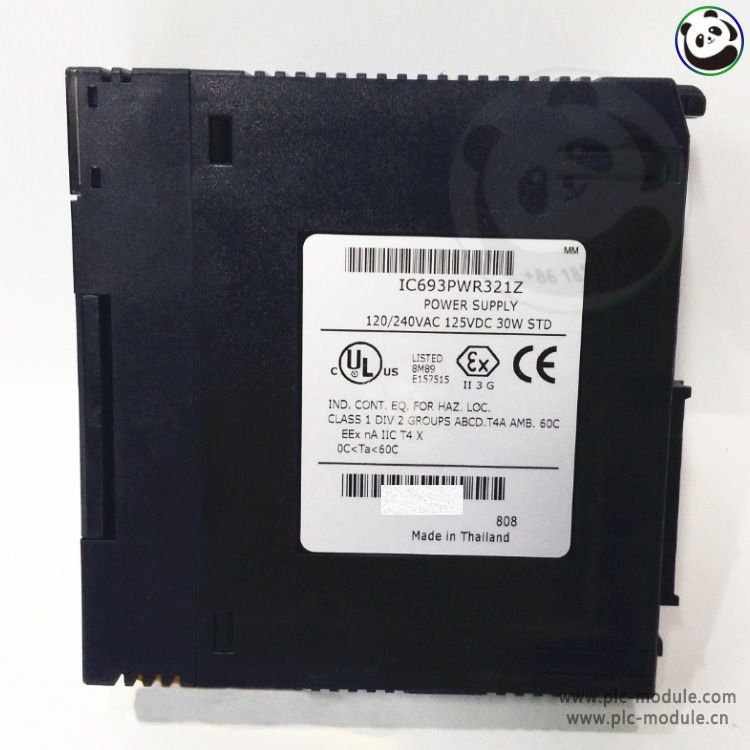

The GE IC693PWR321 (IC693PWR321Z) Power Supply is a rugged, high-performance module designed for GE Series 90-30 PLC systems. It delivers stable 5V DC (1.5A) and 24V DC (0.6A) outputs with universal 85-264V AC/DC input. Featuring overload protection, high efficiency (>85%), and compact DIN-rail mounting, it ensures reliable power for industrial automation in manufacturing, energy, and process control applications under harsh conditions.
Product Specifications
Key Features:
Dual Output Voltage:
Wide Input Range: 85-264V AC/DC (47-63Hz), compatible with global power standards.
High Efficiency: >85% conversion efficiency, minimizing heat generation.
Robust Protection:
Compact Design:
Status Indicators: LED lights for power on and fault detection.
Certifications & Compliance:
UL 508 Listed (Industrial Control Equipment).
CE Marked (EU Compliance).
cULus Certified (US/Canada Standards).
Meets EN/IEC 61131-2 (PLC Power Supply Standards).
Applications:
GE Series 90-30 PLC Systems.
Factory Automation (Conveyors, Assembly Lines).
Process Control (Oil & Gas, Water Treatment).
Machine Tools & Packaging Equipment.
Technical Specifications:
| Parameter | Specification |
|---|
| Input Voltage | 85-264V AC/DC (47-63Hz) |
| Output 1 | +5V DC ±5%, 1.5A (7.5W max) |
| Output 2 | +24V DC ±10%, 0.6A (14.4W max) |
| Efficiency | >85% (typical) |
| Operating Temp. | 0°C to +60°C (derating above 40°C) |
| Storage Temp. | -40°C to +85°C |
| Safety Standards | UL 508, EN/IEC 61131-2 |
| Dimensions (HxWxD) | 90mm x 60mm x 115mm |
