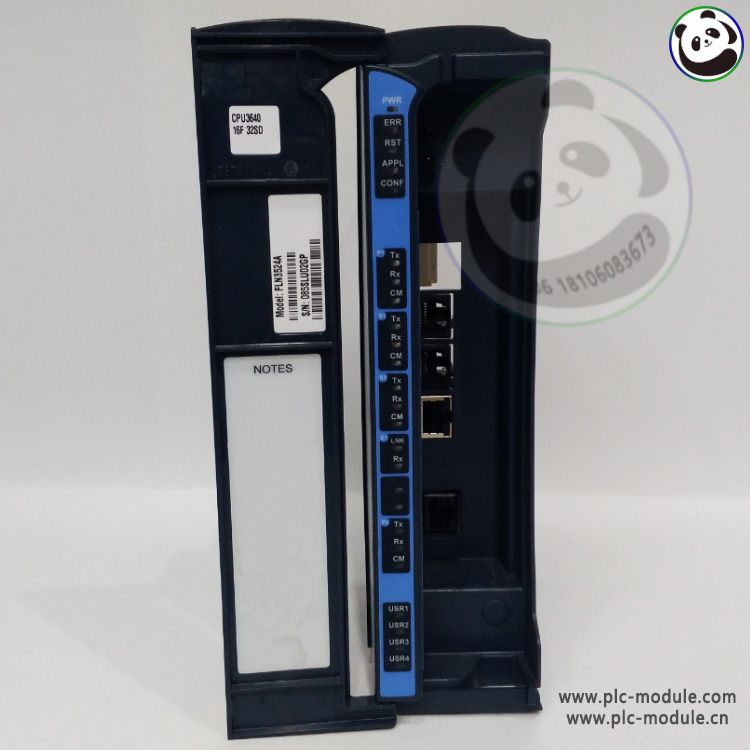

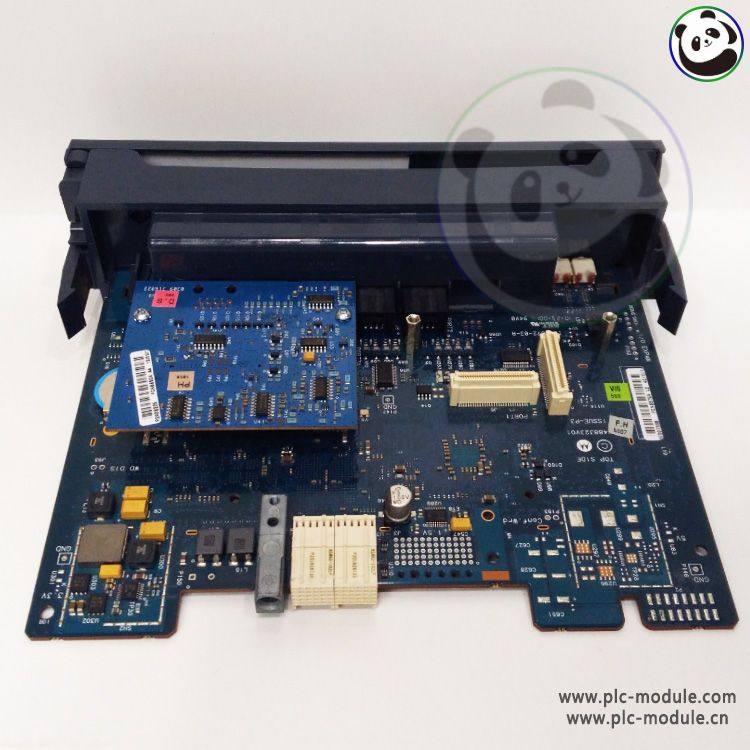

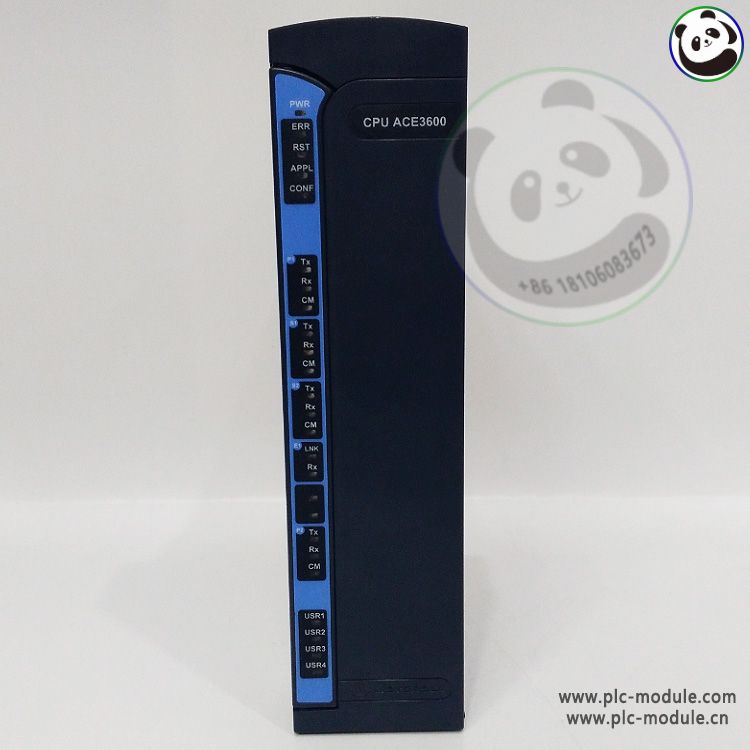

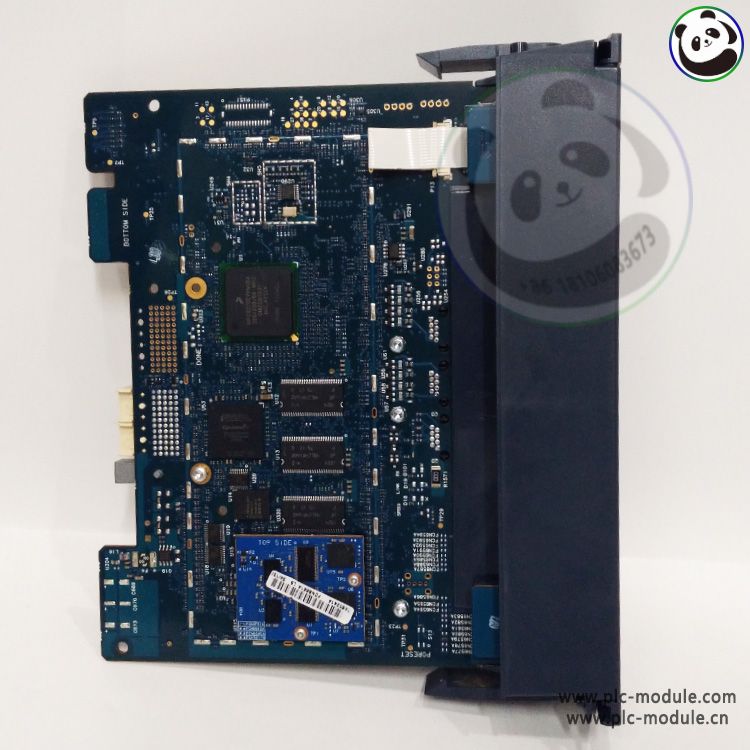

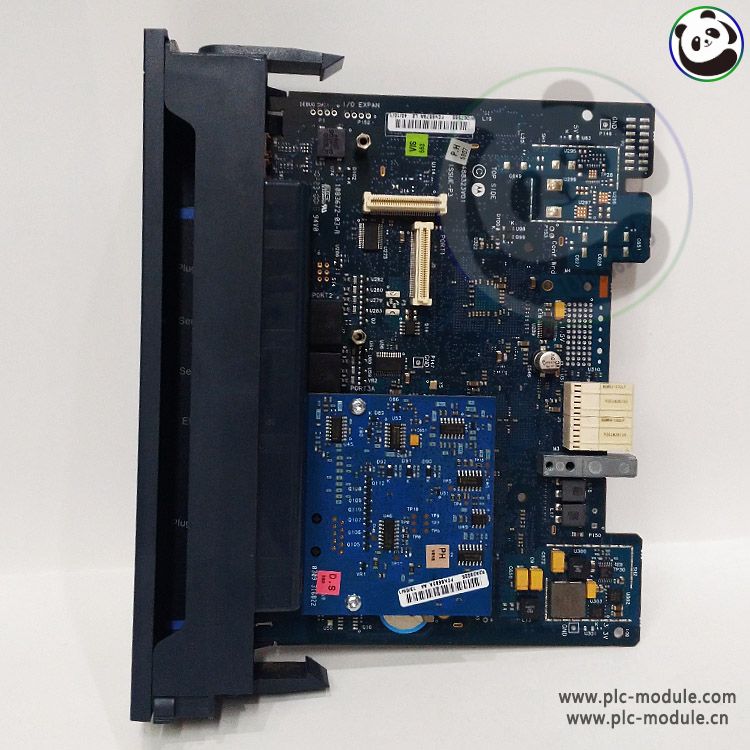

Motorola CPU ACE3600 CPU3640 (FLN3524A) is an industrial-grade PowerPC-based processor module designed for mission-critical automation. Featuring ruggedized construction, extended temperature tolerance (-40°C to +85°C), and interfaces including Ethernet, serial, and VME/PCI expansion, it delivers reliable real-time control for power generation, factory automation, and transportation systems. This legacy module remains integral to vintage GE, Siemens, and Emerson industrial platforms.
Product Specifications
Core Architecture
CPU: PowerPC 603e/750 core @ 200-400 MHz
FPU: Integrated hardware floating-point unit
Cache: 32KB L1 (I/D), optional L2
Memory
DRAM: 64-256MB SDRAM (72-pin SIMM slots)
Non-Volatile: 8MB Flash (firmware), 512KB NVRAM (battery-backed)
Interfaces
Serial: 2x RS-232/485 (DB9, configurable)
Ethernet: 10/100Base-T (RJ45)
Expansion: VME64x backplane + PMC slot
Ruggedization
Operating Temp: -40°C to +85°C
Conformal Coating: Optional anti-corrosion
Certifications: UL 508, IEC 61131-2
Software
RTOS Support: VxWorks, QNX, LynxOS
Legacy Compatibility: Motorola VME drivers
Applications
Power: GE Mark V turbine control
Factory: Robotic PLC backplanes
Transport: Railway signaling systems
Obsolete Status
