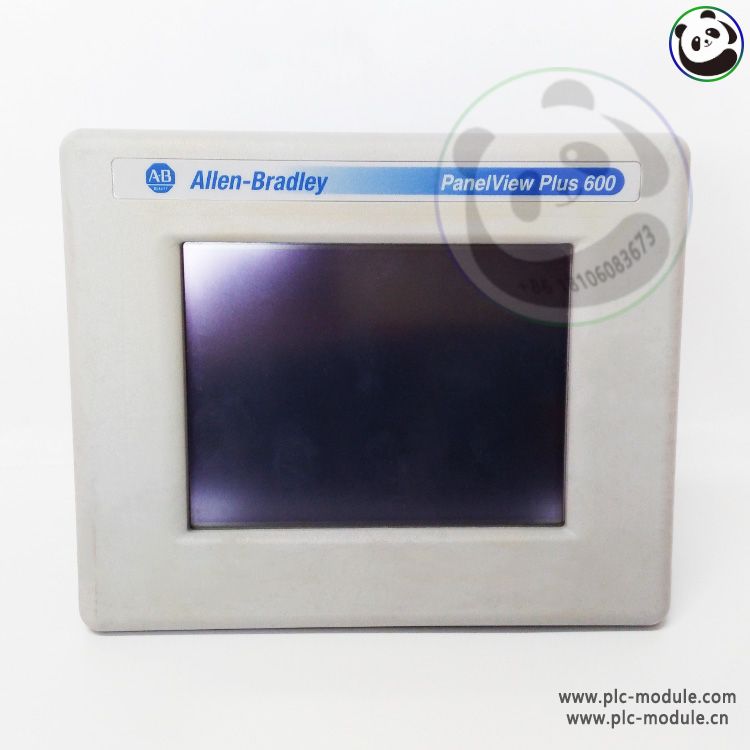

Allen-Bradley 2711P-T6C5A PanelView Plus 600 is a 6-inch color touchscreen HMI with 640x480 resolution and resistive touch. Featuring a 400MHz processor and 64MB memory, it runs PanelView Plus CE applications. With EtherNet/IP and serial ports, it integrates seamlessly with ControlLogix and CompactLogix systems. The IP65-rated front panel makes it ideal for industrial automation, process control, and machine interface applications in demanding environments.
Product Specifications
Key Specifications:
Display: 6.5" TFT LCD (640x480 VGA resolution)
Touch Technology: Analog resistive touchscreen
Processor: 400MHz with 64MB DRAM/64MB Flash
Operating System: Windows CE .NET
Communication Interfaces:
1x EtherNet/IP port (10/100Base-T)
1x RS-232 serial port (DF1 protocol)
1x RS-485 serial port (DH-485 protocol)
Performance Features:
Application Runtime: PanelView Plus CE
Maximum Tags: 5000 total tags
Alarm Capacity: 1000 alarms
Data Logging: Supports 4000 records
Update Rate: 50ms minimum
Environmental Ratings:
Front Panel: IP65/NEMA 4X (when properly installed)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -30°C to 60°C (-22°F to 140°F)
Relative Humidity: 5% to 95% (non-condensing)
Physical Characteristics:
Dimensions: 215 x 170 x 56 mm (8.46 x 6.69 x 2.20 in)
Weight: 1.36 kg (3.0 lbs)
Mounting: Panel mount (cutout 192 x 148 mm)
Power Requirements:
Input Voltage: 24V DC (18-32V DC range)
Power Consumption: 24W max
Backup Battery: 3V lithium
Certifications:
Safety: UL/cUL Listed, CE Marked
EMC: EN 61326-1, EN 61000-6-2, EN 61000-6-4
Vibration/Shock: Complies with IEC 60068-2
