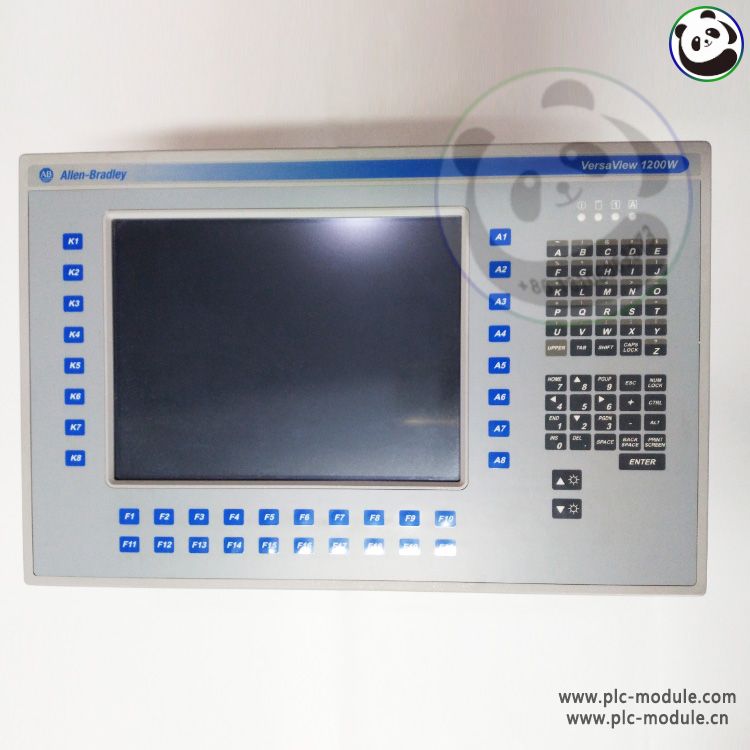

Allen-Bradley 6180W-12BPXPHDC VersaView 1200W is an industrial-grade 12.1-inch widescreen touch display with 1280×800 WXGA resolution. Featuring a multi-touch projected capacitive touchscreen and Intel Core i5 processor, it delivers high-performance visualization for industrial automation. With IP65-rated front protection, wide operating temperature range, and multiple connectivity options, it's ideal for demanding HMI applications in manufacturing, process control, and machine interface systems.
Product Specifications
Display Specifications:
Screen Size: 12.1" widescreen (16:10 aspect ratio)
Resolution: 1280×800 WXGA
Brightness: 1000 cd/m² (typical)
Contrast Ratio: 1000:1
Viewing Angle: 170° horizontal/vertical
Touch Technology: Projected capacitive (multi-touch support)
Processing Power:
Processor: Intel Core i5-4300U (1.9GHz, up to 2.9GHz Turbo)
Memory: 4GB DDR3L (expandable to 8GB)
Storage: 128GB SSD (optional upgrades available)
Graphics: Intel HD Graphics 4400
Environmental Ratings:
Front Panel: IP65/NEMA 4X compliant
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 10% to 95% (non-condensing)
Vibration: 5-500Hz, 1G (operating)
Shock: 30G (operating), 50G (non-operating)
Connectivity:
Ethernet: 2× Gigabit Ethernet (10/100/1000Base-T)
USB: 4× USB 3.0 ports
Serial: 1× RS-232/422/485 port
Video Output: 1× DisplayPort
Expansion: 1× PCIe Mini Card slot
