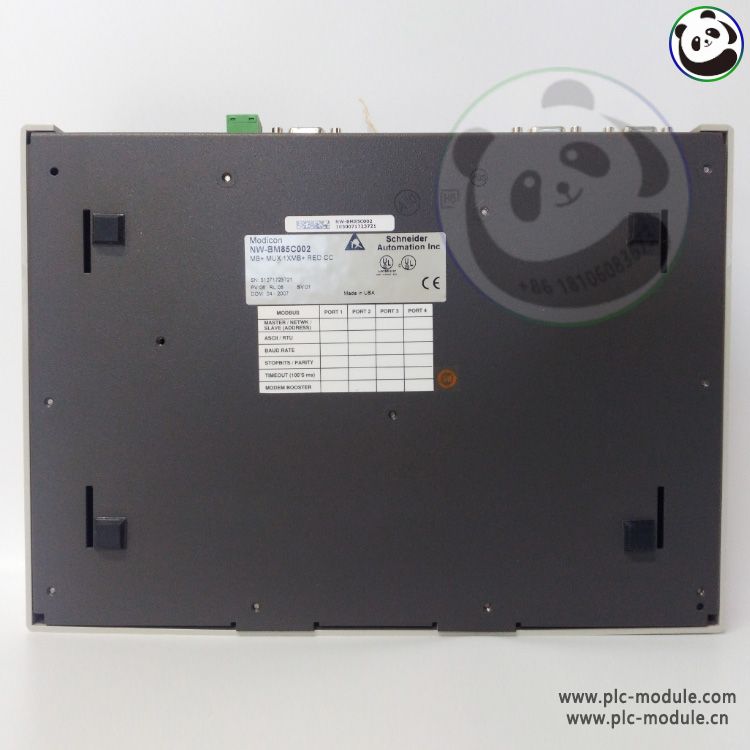

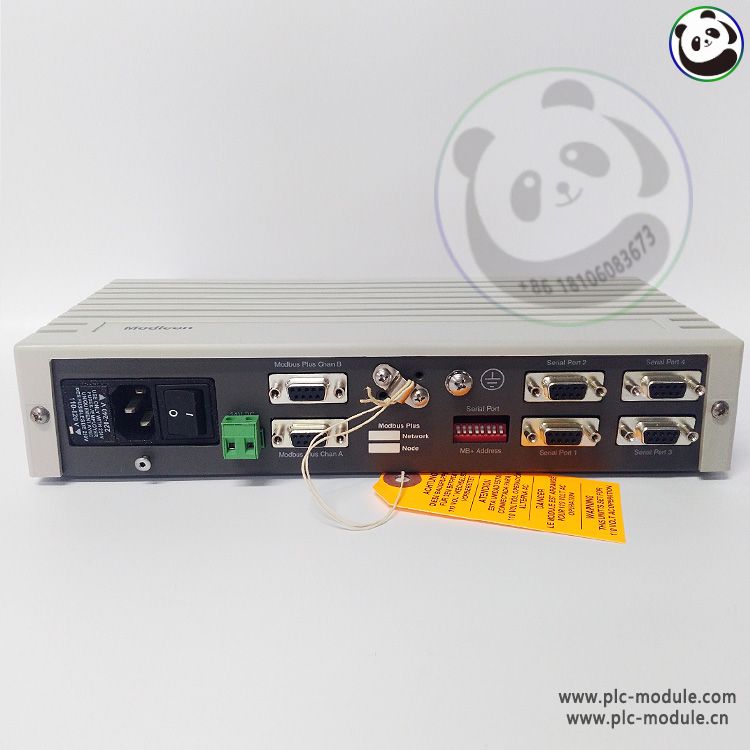

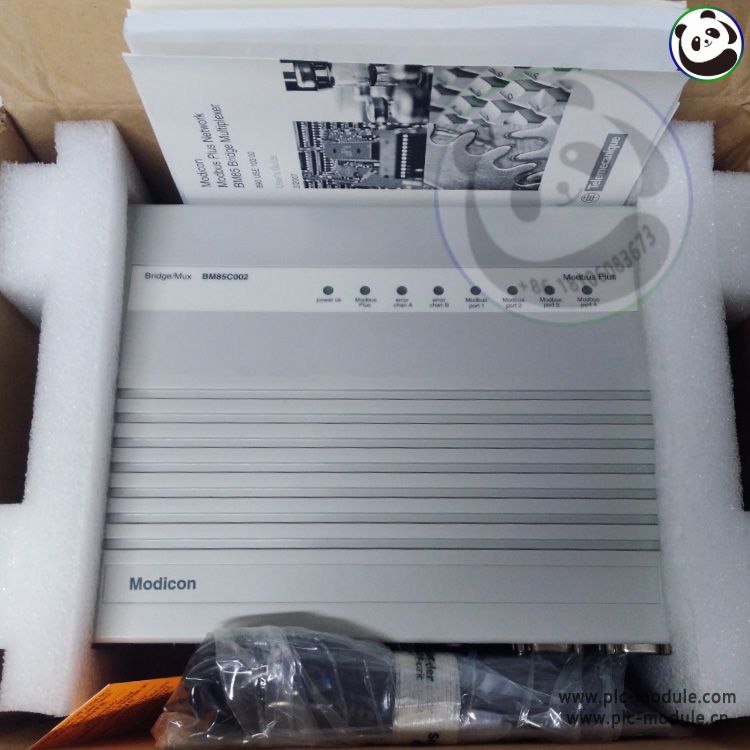

Modicon NW-BM85C002 is a professional-grade Modbus Plus bridge/multiplexer module designed for industrial network expansion. It enables high-speed communication between Modbus Plus networks and other protocols, facilitating seamless data exchange in automation systems. With rugged construction and reliable performance, it's ideal for connecting PLCs, HMIs, and control devices in demanding industrial environments like manufacturing, energy, and process control applications.
Product Specifications
Core Specifications:
Model: NW-BM85C002
Type: Modbus Plus Bridge/Multiplexer
Manufacturer: Modicon (Schneider Electric)
Network Type: Modbus Plus (MB+)
Communication Features:
Baud Rate: 1 Mbps (Modbus Plus standard)
Port Configuration: Dual MB+ ports for network extension
Protocol Conversion: MB+ to other industrial protocols (optional)
Node Capacity: Supports up to 64 nodes per segment
Hardware Design:
Mounting: DIN-rail (35mm) or panel mount
Enclosure: Industrial-grade metal housing
LED Indicators: Network status, power, activity
Termination: Built-in terminator switch
Electrical Specifications:
Power Supply: 24V DC (±10%)
Power Consumption: <5W typical
Isolation: 1500V RMS (port-to-port)
Environmental Ratings:
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Humidity: 5% to 95% non-condensing
Vibration/Shock: IEC 60068-2 standards
Certifications & Compliance:
EMC: EN 61000-6-2/6-4
Safety: UL, CE, cULus
RoHS: Compliant
Typical Applications:
