Honeywell CC-PAIH02 51405038-375 Hart Analog Input Module

  • Warranty: 365 days
  • Quality: Original module
  • Condition: New / Used
  • Warehouse: Spot
  • Delivery time: Shipped in 3 days after payment
  • Mailbox:panda@xiongbaindustrial.com

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible


The Honeywell CC-PAIH02 51405038-375 is an advanced HART-ENABLED ANALOG INPUT MODULE designed for integration with Honeywell's Experion® PKS process control system. This module provides high-accuracy signal acquisition while enabling bi-directional HART digital communication, making it ideal for smart field device integration in critical process industries including oil & gas, petrochemical, and power generation.





CC-PAIH02 Download relevant information:

HONEYWELL CC- .pdf




Technical Specifications

ParameterSpecification
Model NumberCC-PAIH02 (51405038-375)
Input Types4-20mA, 0-20mA, ±10V, ±5V, ±1V
HART ProtocolHART 7 (IEC 61158)
ADC Resolution24-bit ΔΣ converter
Basic Accuracy±0.05% of span
Update Rate50ms per channel (typical)
Isolation1,000V RMS (channel-to-channel)
HART ComplianceHCF_SPEC-13, HART PSK physical layer
Operating Temp.-40°C to +70°C
Power Consumption1.2W per channel
CompatibilityExperion PKS, C300 Controller

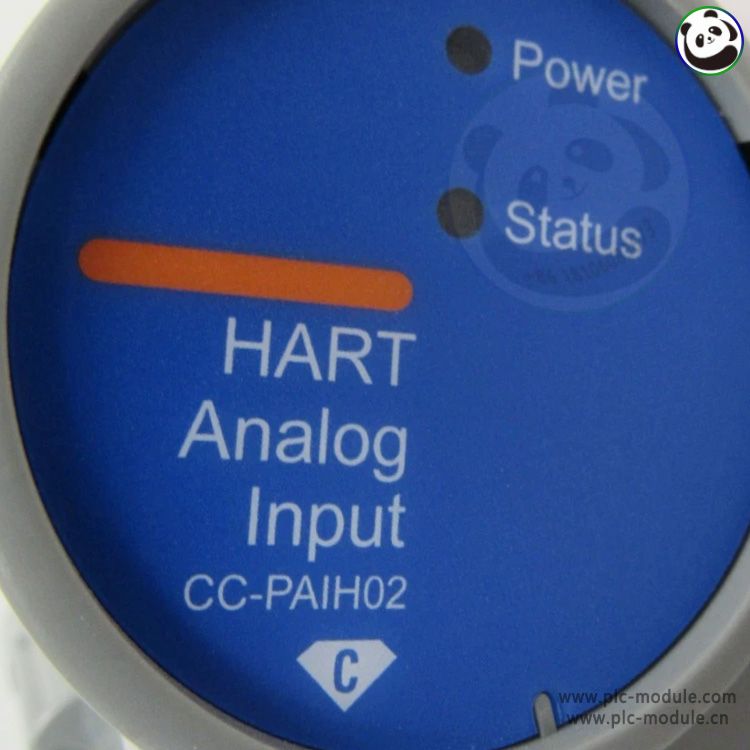

Honeywell CC-PAIH02 51405038-375 Hart Analog Input Module.jpg

Key Features & Enhancements

1. Enhanced HART Communication Capability

Full HART 7 protocol support with improved digital signal processing

Simultaneous 4-20mA analog + HART digital communication

Multidrop mode support (up to 16 HART devices per network)

Enhanced noise immunity for reliable HART communication in electrically noisy environments

2. High-Performance Analog Input

24-bit ΔΣ ADC resolution for superior measurement accuracy

±0.05% basic accuracy (enhanced from CC-PAIH01's ±0.1%)

Configurable input types: 4-20mA, 0-20mA, ±10V, ±5V, ±1V

1,000V RMS channel-to-channel isolation

3. Advanced Diagnostics & Maintenance

Onboard HART modem for field device configuration

Predictive maintenance capabilities through HART parameter monitoring

LED status indicators per channel for quick fault identification

Hot-swappable design with automatic configuration recovery.

Honeywell CC-PAIH02 51405038-375 Hart Analog Input Module..jpg

Functional Improvements Over CC-PAIH01

1. Performance Enhancements

Doubled ADC resolution (24-bit vs 16-bit)

50% better accuracy (±0.05% vs ±0.1%)

Faster sampling rate (50ms vs 100ms per channel)

Higher isolation voltage (1,000V vs 1,500V)

2. Expanded Functionality

Additional voltage input ranges (±5V, ±1V)

Improved HART signal processing for noisy environments

Enhanced diagnostic capabilities through Experion PKS

Honeywell CC-PAIH02 51405038-375 Hart Analog Input Module...jpg

Typical Applications

1. Smart Field Device Integration

HART-enabled transmitters (pressure, temperature, flow)

Intelligent valve positioners and actuators

Analytical instruments (pH, conductivity, gas analyzers)

2. Advanced Process Control

Closed-loop control with HART multivariable devices

Predictive maintenance implementations

Process optimization through HART data analytics.
