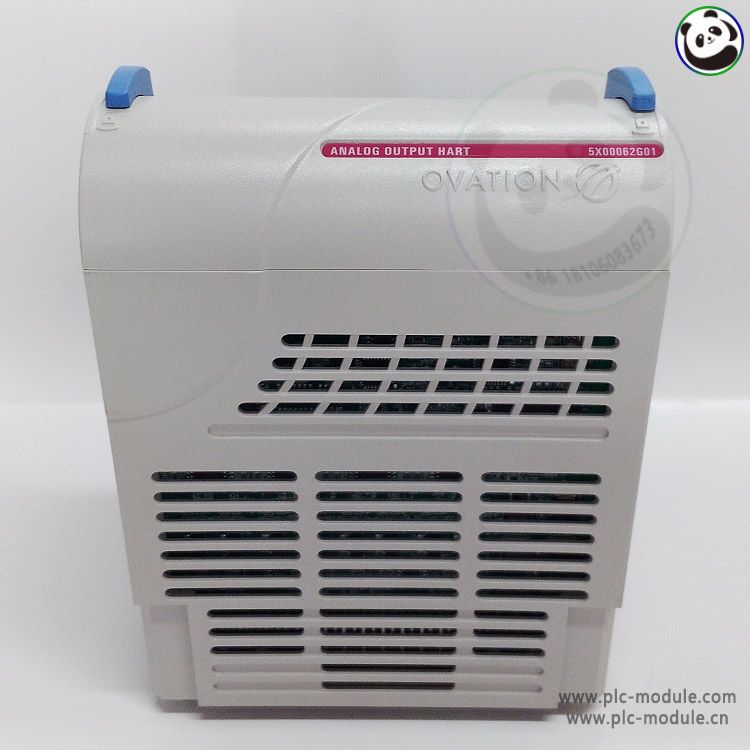

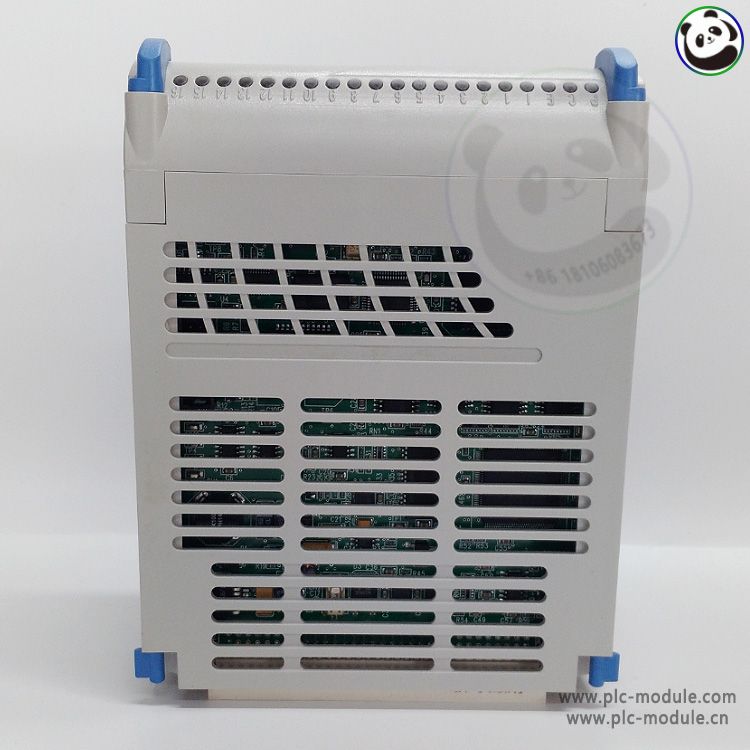

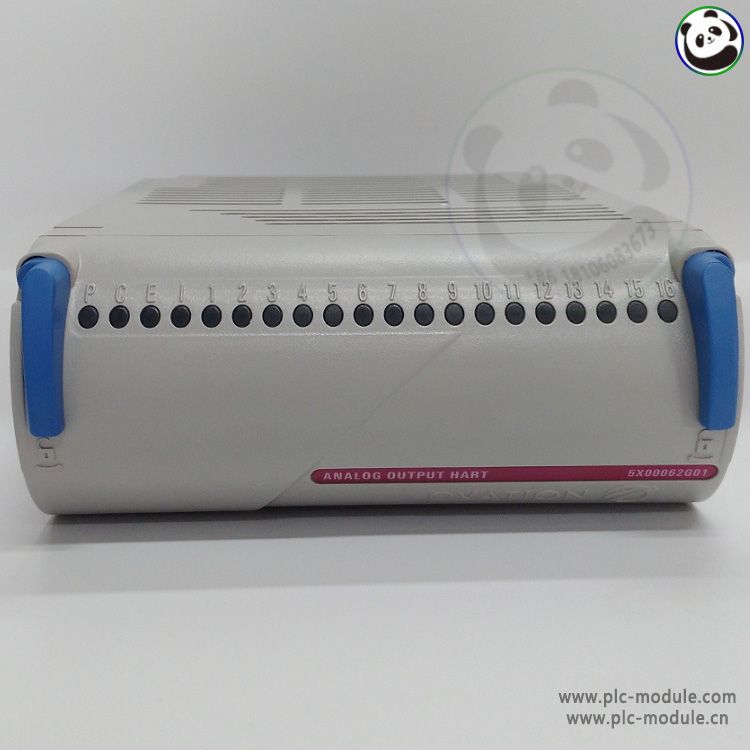

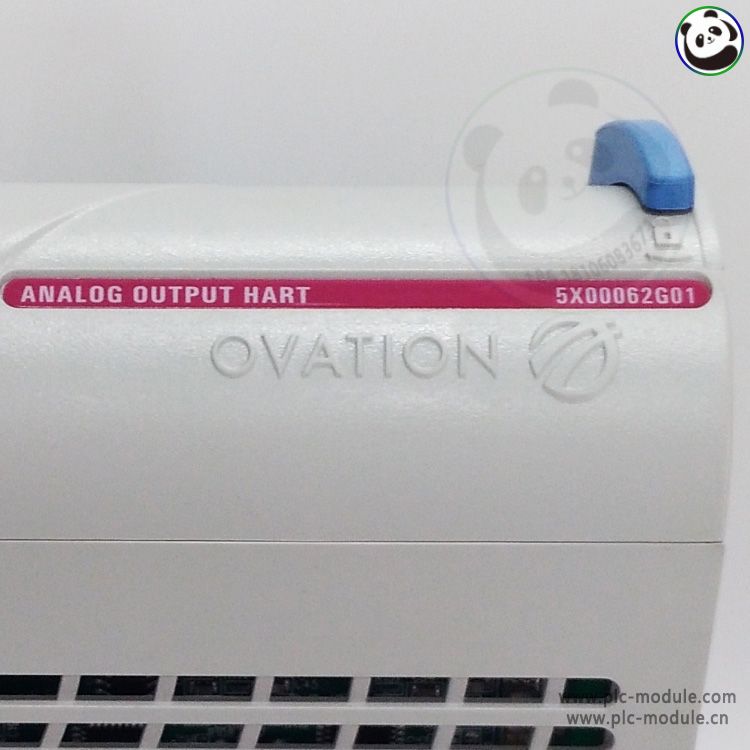

The EMERSON 5X00062G01 is a HART-enabled analog output module designed for precise process control in industrial automation systems. Part of Emerson's trusted product line, it provides 4-20mA current output with HART communication, enabling bidirectional digital communication while maintaining analog signaling. Ideal for smart device integration, this module ensures high accuracy, reliability, and diagnostics in critical applications like oil & gas, chemical processing, and power generation.
Product Specifications
General Specifications:
Manufacturer: Emerson
Model: 5X00062G01
Type: Analog Output Module with HART Protocol
Mounting: DIN rail or panel mounting (compatible with Emerson systems)
Operating Temperature: -40°C to +85°C (industrial-grade)
Humidity Range: 5% to 95% (non-condensing)
Vibration/Shock Resistance: Compliant with IEC 60068-2-6 / 60068-2-27
Protection Class: IP20 (module enclosure)
Electrical & Communication Specifications:
Output Signal: 4-20mA (HART-enabled)
HART Protocol: Supports HART 7.x (FSK-based digital communication)
Communication Speed: 1200 bps (HART)
Output Resolution: 16-bit (high precision)
Accuracy: ±0.1% of span (typical)
Load Compliance: Up to 600Ω @ 20mA
Isolation: 1500V AC (channel-to-channel & field-to-logic)
Noise Immunity: Meets IEC 61000-4 (EMC/EMI protection)
HART-Specific Features:
Bidirectional Communication: Allows digital configuration & diagnostics without interrupting 4-20mA signal.
Device Configuration: Supports HART DD (Device Description) files for smart instrument integration.
Remote Calibration: Enables loop calibration & trimming via HART commands.
Diagnostics: Provides real-time health monitoring (e.g., open-circuit detection, signal integrity).
Power & Safety:
Power Supply: 24V DC (±10%)
Power Consumption: <3W (typical)
Short-Circuit Protection: Auto-cutoff on overload
Reverse Polarity Protection: Prevents damage from incorrect wiring
Certifications:
Mechanical & Integration:
