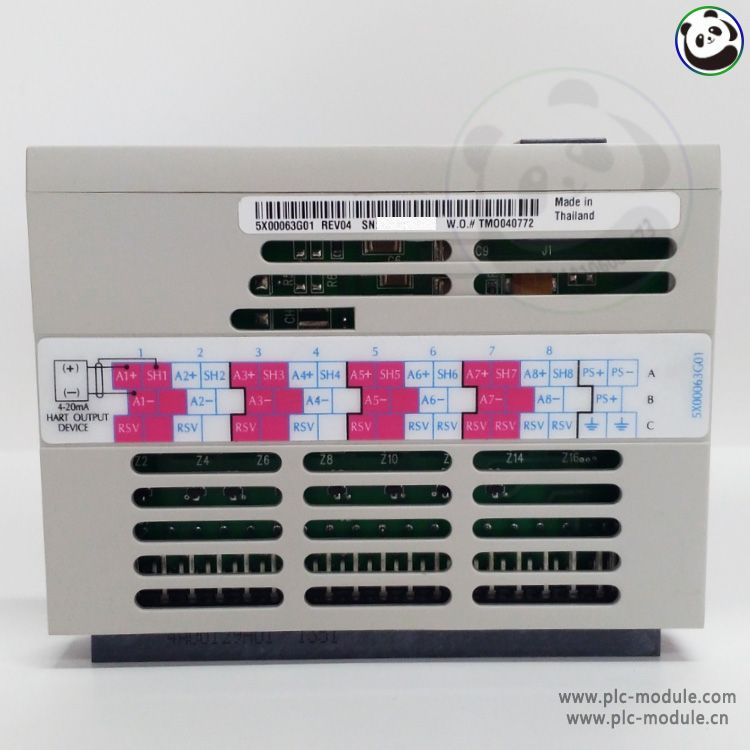

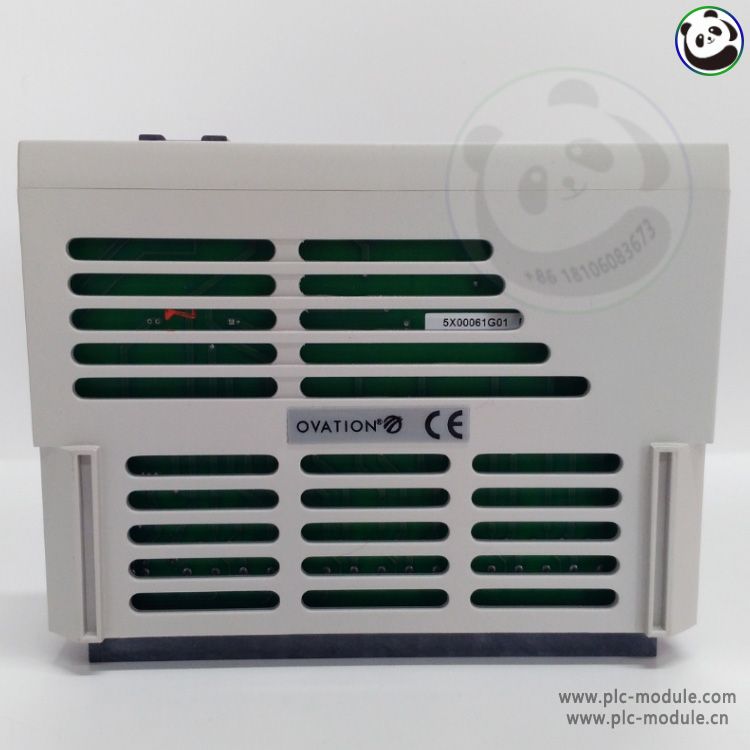

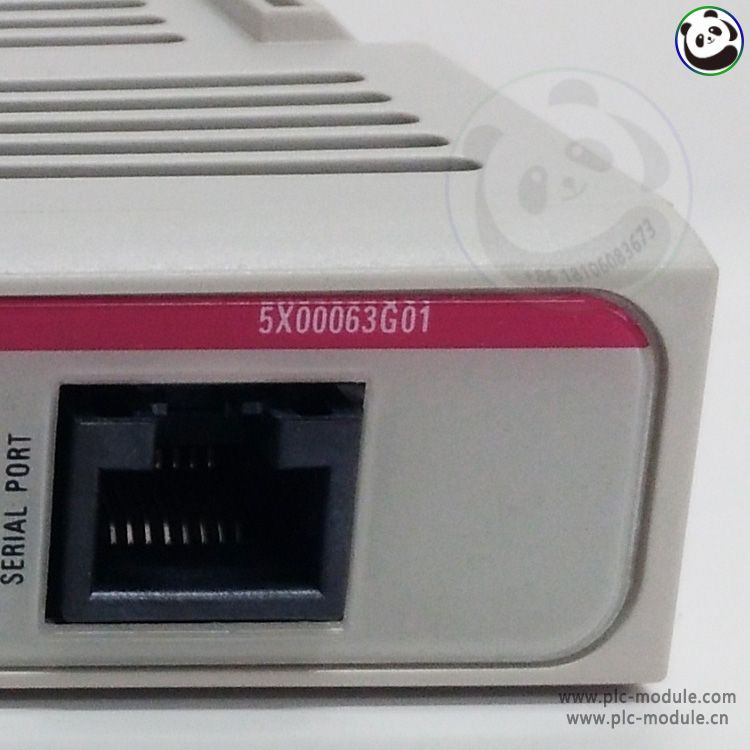

EMERSON 5X00063G01 Ovation HART 8-Channel Analog Output Module

  • Warranty: 365 days
  • Quality: Original module
  • Condition: New / Used
  • Warehouse: Spot
  • Delivery time: Shipped in 3 days after payment
  • Mailbox:panda@xiongbaindustrial.com

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible


The EMERSON 5X00063G01 is an 8-channel HART-enabled analog output module for Ovation control systems. It provides high-density 4-20mA current outputs with integrated HART communication, enabling smart device configuration and monitoring. Designed for critical process applications, this module offers exceptional channel-to-channel isolation, high accuracy, and robust diagnostics, making it ideal for power generation, oil & gas, and chemical processing industries requiring reliable analog control with digital intelligence.


Product Specifications


General Specifications:

  • Manufacturer: Emerson Process Management

  • Model Number: 5X00063G01

  • Module Type: 8-Channel Isolated Analog Output

  • System Compatibility: Ovation Distributed Control System (DCS)

  • HART Protocol Version: 7.x compliant

  • Mounting: Ovation I/O Module Carrier

  • Operating Temperature: -40°C to +70°C

  • Storage Temperature: -40°C to +85°C

  • Relative Humidity: 5% to 95% non-condensing

  • Altitude Rating: Up to 2000 meters

  • Vibration Resistance: 5-150Hz, 1G peak

  • Shock Resistance: 30G, 11ms duration

  • Protection Class: IP20 (enclosure)

Electrical Characteristics:

  • Output Channels: 8 fully isolated

  • Output Signal: 4-20mA with HART overlay

  • Output Resolution: 16-bit

  • Accuracy: ±0.1% of span (±0.05% typical)

  • Update Rate: 10ms per channel (maximum)

  • Load Compliance: 0-750Ω (at 20mA)

  • Channel-to-Channel Isolation: 1500V AC

  • Field-to-System Isolation: 1500V AC

  • Common Mode Rejection: >120dB at 50/60Hz

  • Normal Mode Rejection: >60dB

HART Communication:

  • HART Implementation: Bell 202 Frequency Shift Keying

  • Communication Rate: 1200 bps

  • Simultaneous Communication: 1 channel at a time (multiplexed)

  • Supported Commands: Universal, Common Practice, Device-Specific

  • HART Variables: PV, SV, TV, QV supported

  • Device Description Files: Supports all standard HART DD files

Power Requirements:

  • Power Supply: 24V DC nominal (18-30V DC range)

  • Power Consumption: 6W typical (8W maximum)

  • Inrush Current: <20A for 10ms

  • Isolation Voltage: 1500V AC input-to-output
